2-Driver 10-inch Round Vented / Bass-Reflex Subwoofer Box

  1. Cajas listas
  2. 2-Driver 10-inch Round Vented / Bass-Reflex Subwoofer Box
Usar en el calculador

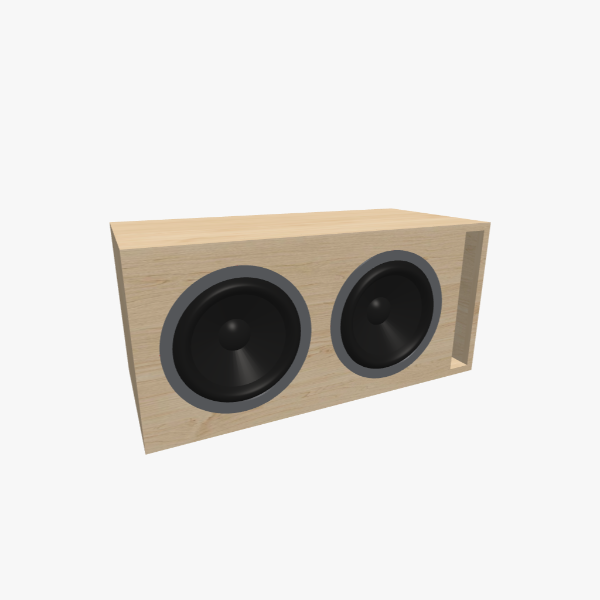

2-driver 10-inch round Vented / Bass-Reflex subwoofer box with a 60 L chamber, 38 Hz tuning and an L-shaped slot port, solid exterior, 733 × 346 × 346 mm (28.82 × 13.63 × 13.63 in).
2-driver 10-inch round Vented / Bass-Reflex subwoofer box with a 60 L chamber, 38 Hz tuning and an L-shaped slot port, solid exterior, 733 × 346 × 346 mm (28.82 × 13.63 × 13.63 in).
Vented / Bass-Reflex enclosure for two 10-inch subwoofers with a 60 L chamber and 38 Hz tuning, solid exterior, 733 × 346 × 346 mm (28.82 × 13.63 × 13.63 in).
10-inch dual-driver Vented / Bass-Reflex subwoofer cabinet with 60 L volume and L-shaped slot port at 38 Hz, solid exterior, 733 × 346 × 346 mm (28.82 × 13.63 × 13.63 in).
60 L Vented / Bass-Reflex enclosure for 2-driver 10-inch round speakers tuned to 38 Hz, solid exterior view, 733 × 346 × 346 mm (28.82 × 13.63 × 13.63 in).
2-driver 10-inch 60 L Vented / Bass-Reflex subwoofer box design with 38 Hz tuning, solid exterior, 733 × 346 × 346 mm (28.82 × 13.63 × 13.63 in).
Vented / Bass-Reflex subwoofer box for two 10-inch drivers, 60 L chamber with 38 Hz tuning, solid exterior, 733 × 346 × 346 mm (28.82 × 13.63 × 13.63 in).
38 Hz tuned Vented / Bass-Reflex enclosure for dual 10-inch subwoofers, 60 L volume, solid exterior, 733 × 346 × 346 mm (28.82 × 13.63 × 13.63 in).
Disassembled parts of a 2-driver 10-inch 60 L Vented / Bass-Reflex subwoofer box tuned to 38 Hz with an L-shaped slot port, 733 × 346 × 346 mm (28.82 × 13.63 × 13.63 in).

Descripción

Designed for a 2-driver 10-inch round subwoofer, this Vented / Bass-Reflex enclosure features a 60 L chamber tuned to 38 Hz. The cabinet is constructed from 16 mm (5/8 inch) material in a simple rectangle shape with external dimensions of 733 × 346 × 346 mm (28.82 × 13.63 × 13.63 in). It is engineered for balanced sound and everyday car-audio use, accounting for limited trunk space and installation constraints, while also serving as a general-purpose home subwoofer enclosure that balances bass extension, size, and low distortion. The design utilizes one L-shaped slot port with a port area optimized for high-output, large-excursion drivers and SPL-oriented applications with high airflow demands.

Volumen y afinación

60 l
Volumen interno
38 Hz
Frecuencia de afinación

Propiedades de la caja

Forma
Simple Rectangle
Grosor del material (mm)
16
Grosor del material (pulgada)
5/8
Dimensiones de la caja (mm)
733 × 346 × 346
Dimensiones de la caja (pulgadas)
28.82 × 13.63 × 13.63
Potencia RMS máxima de altavoz(es) hasta
150 W
Capas del panel para el altavoz
Simple
Número de vías
1

Caja y altavoz

Caja
Reflejo de bajos
Configuración de altavoces
Múltiple
Número de altavoces
2
Tamaño del altavoz
10"

Puerto

Tipo de puerto
Rectangular
Número de puertos
1
Área del puerto (mm²)
16215
Apariencias
Ver todo
Single Vented Bass-Reflex Enclosure with 1 L-shaped slot port featuring a light oak front panel, solid exterior

Light Oak

Loudspeaker enclosure featuring a light oak front panel.

Single Vented Bass-Reflex Enclosure with 1 L-shaped slot port featuring a raw unfinished cherry wood front panel, solid exterior

Raw Cherry

A speaker enclosure featuring a raw, unfinished cherry wood front panel.

Single Vented Bass-Reflex Enclosure with 1 L-shaped slot port and 12 mm rounded front edges, solid exterior

12 mm Rounded Front Edges

The front edges of the enclosure feature a 12 mm radius rounding.

Single Vented Bass-Reflex Enclosure with 1 L-shaped slot port and 12 mm front panel chamfer, solid exterior

12 mm Front Panel Chamfer

The front panel features a 12 mm chamfered edge.
