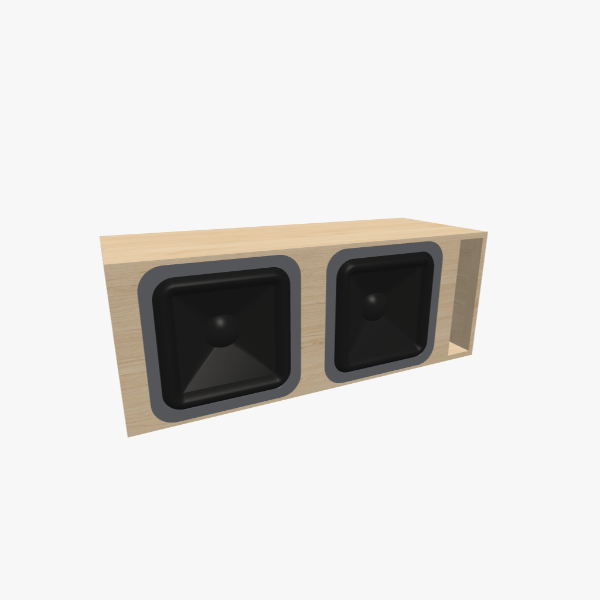

Dual 15-inch Vented / Bass-Reflex Subwoofer Box - 130 L / 32 Hz
Descripción
This Vented / Bass-Reflex enclosure is designed for two 15-inch rectangular subwoofer drivers, featuring a 130 L chamber tuned to 32 Hz. Built from 18 mm (3/4 inch) material, the simple rectangular cabinet measures 1119 × 426 × 426 mm (44.73 × 16.79 × 16.79 in). A double-thickness front baffle increases rigidity and reduces flex, making it ideal for high-output subwoofer systems. The design utilizes one L-shaped slot port with an area optimized for high-output, large-excursion drivers and high-airflow SPL demands. It serves as a balanced home subwoofer for stereo systems or a daily car-audio solution that respects limited trunk space and installation constraints while providing low distortion and deep bass extension.
Volumen y afinación
130 l
Volumen interno
32 Hz
Frecuencia de afinación
Propiedades de la caja
Forma
Simple Rectangle
Grosor del material (mm)
18
Grosor del material (pulgada)
3/4
Dimensiones de la caja (mm)
1119 × 426 × 426
Dimensiones de la caja (pulgadas)
44.73 × 16.79 × 16.79
Potencia RMS máxima de altavoz(es) hasta
40 W
Capas del panel para el altavoz
Doble
Número de vías
1
Caja y altavoz
Caja
Reflejo de bajos
Configuración de altavoces
Múltiple
Número de altavoces
2
Tamaño del altavoz
15" Rectangle
Puerto
Tipo de puerto
Rectangular
Número de puertos
1
Área del puerto (mm²)
36483
