Dual 8-inch Round Subwoofer Vented / Bass-Reflex Box - 50 L / 32 Hz

  1. Cajas listas
  2. Dual 8-inch Round Subwoofer Vented / Bass-Reflex Box - 50 L / 32 Hz
Usar en el calculador

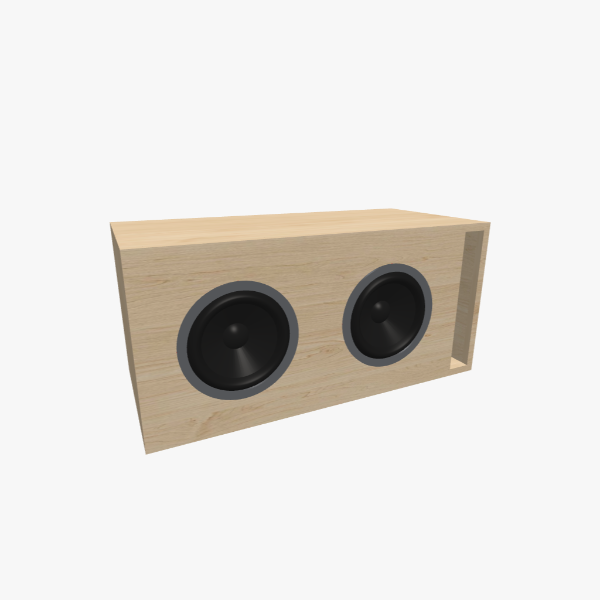

Dual 8-inch round subwoofer vented / bass-reflex box, 50 L chamber tuned to 32 Hz with one L-shaped slot port, solid exterior, 727 × 344 × 344 mm (28.58 × 13.54 × 13.54 in).
Dual 8-inch round subwoofer vented / bass-reflex box, 50 L chamber tuned to 32 Hz with one L-shaped slot port, solid exterior, 727 × 344 × 344 mm (28.58 × 13.54 × 13.54 in).
Vented / bass-reflex enclosure for two 8-inch round subwoofers, 50 L volume and 32 Hz tuning, L-shaped slot port, solid exterior, 727 × 344 × 344 mm (28.58 × 13.54 × 13.54 in).
Dual 8-inch round subwoofer vented / bass-reflex box, 50 L at 32 Hz, featuring one L-shaped slot port, solid exterior, 727 × 344 × 344 mm (28.58 × 13.54 × 13.54 in).
Rectangular 50 L vented / bass-reflex enclosure for two 8-inch round subwoofers tuned to 32 Hz, solid exterior, 727 × 344 × 344 mm (28.58 × 13.54 × 13.54 in).
Two-driver 8-inch round subwoofer vented / bass-reflex box, 50 L chamber, 32 Hz tuning, L-shaped slot port, solid exterior, 727 × 344 × 344 mm (28.58 × 13.54 × 13.54 in).
Dual 8-inch round subwoofer 50 L vented / bass-reflex enclosure with a 32 Hz L-shaped slot port, solid exterior, 727 × 344 × 344 mm (28.58 × 13.54 × 13.54 in).
Solid exterior view of a 50 L vented / bass-reflex box for two 8-inch round subwoofers tuned to 32 Hz, 727 × 344 × 344 mm (28.58 × 13.54 × 13.54 in).
Disassembled parts of a dual 8-inch round subwoofer vented / bass-reflex box, 50 L chamber, 32 Hz tuning, L-shaped slot port, 727 × 344 × 344 mm (28.58 × 13.54 × 13.54 in).

Descripción

This Vented / Bass-Reflex enclosure is designed for 2-driver 8-inch round subwoofer units, featuring a 50 L chamber tuned to 32 Hz. The simple rectangle cabinet is built from 16 mm (5/8 inch) material with external dimensions of 727 × 344 × 344 mm (28.58 × 13.54 × 13.54 in). It functions as a general-purpose home subwoofer enclosure for music and stereo systems, balancing bass extension, cabinet size, output, and low distortion. Additionally, it is suitable for everyday car-audio use, accounting for limited trunk space, installation constraints, and balanced sound. The design incorporates one L-shaped slot port with an area optimized for high-output, large-excursion drivers and SPL-oriented use with high airflow demand.

Volumen y afinación

50 l
Volumen interno
32 Hz
Frecuencia de afinación

Propiedades de la caja

Forma
Simple Rectangle
Grosor del material (mm)
16
Grosor del material (pulgada)
5/8
Dimensiones de la caja (mm)
727 × 344 × 344
Dimensiones de la caja (pulgadas)
28.58 × 13.54 × 13.54
Potencia RMS máxima de altavoz(es) hasta
290 W
Capas del panel para el altavoz
Simple
Número de vías
1

Caja y altavoz

Caja
Reflejo de bajos
Configuración de altavoces
Múltiple
Número de altavoces
2
Tamaño del altavoz
8"

Puerto

Tipo de puerto
Rectangular
Número de puertos
1
Área del puerto (mm²)
16215
Apariencias
Ver todo
Single Vented Bass-Reflex Enclosure with 1 L-shaped slot port featuring a light oak front panel, solid exterior

Light Oak

Loudspeaker enclosure featuring a light oak front panel.

Single Vented Bass-Reflex Enclosure with 1 L-shaped slot port featuring a raw unfinished cherry wood front panel, solid exterior

Raw Cherry

A speaker enclosure featuring a raw, unfinished cherry wood front panel.

Single Vented Bass-Reflex Enclosure with 1 L-shaped slot port and 12 mm rounded front edges, solid exterior

12 mm Rounded Front Edges

The front edges of the enclosure feature a 12 mm radius rounding.

Single Vented Bass-Reflex Enclosure with 1 L-shaped slot port and 12 mm front panel chamfer, solid exterior

12 mm Front Panel Chamfer

The front panel features a 12 mm chamfered edge.
