Single 10-inch Vented / Bass-Reflex Subwoofer Box

PRO

Se requiere apoyo en Patreon para usar esta plantilla

Para usar esta plantilla, debes ser un patrocinador de pago en Patreon.

Apoyar el proyecto en Patreon

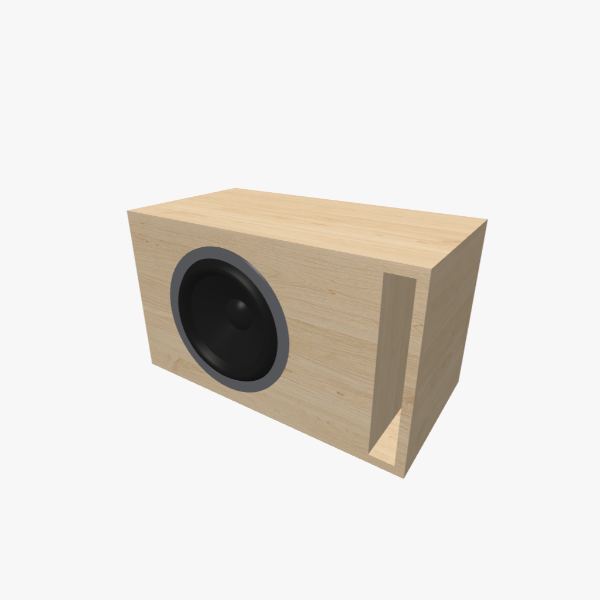

Single 10-inch Round Vented / Bass-Reflex Subwoofer Box, 25 L, 38 Hz, L-shaped slot port, solid exterior, 565 × 329 × 296 mm (22.22 × 12.96 × 11.67 in).

Single 10-inch Round Vented / Bass-Reflex Subwoofer Box, 25 L, 38 Hz, L-shaped slot port, solid exterior, 565 × 329 × 296 mm (22.22 × 12.96 × 11.67 in).

Single 10-inch Round Vented / Bass-Reflex Subwoofer Box, 25 L, 38 Hz, L-shaped slot port, solid exterior, 565 × 329 × 296 mm (22.22 × 12.96 × 11.67 in).

Single 10-inch Round Vented / Bass-Reflex Subwoofer Box, 25 L, 38 Hz, L-shaped slot port, solid exterior, 565 × 329 × 296 mm (22.22 × 12.96 × 11.67 in).

Single 10-inch Round Vented / Bass-Reflex Subwoofer Box, 25 L, 38 Hz, L-shaped slot port, solid exterior, 565 × 329 × 296 mm (22.22 × 12.96 × 11.67 in).

Single 10-inch Round Vented / Bass-Reflex Subwoofer Box, 25 L, 38 Hz, L-shaped slot port, disassembled parts, 565 × 329 × 296 mm (22.22 × 12.96 × 11.67 in).

Descripción

This Vented / Bass-Reflex enclosure is designed for a single 10-inch round subwoofer, featuring a 25 L chamber tuned to 38 Hz. The simple rectangle shape is built from 16 mm (5/8 inch) material with external dimensions of 565 × 329 × 296 mm (22.22 × 12.96 × 11.67 in). One internal brace reinforces the cabinet and reduces panel vibration, making it ideal for high-output subwoofer systems. Utilizing one L-shaped slot port, the port area is specifically suited for high-output, large-excursion drivers and SPL-oriented use with high airflow demand. This design balances bass extension, cabinet size, output, and low distortion, serving as a general-purpose home subwoofer enclosure for music or a daily car-audio solution that respects limited trunk space and installation constraints for balanced sound.

Volumen y afinación

25 l

Volumen interno

38 Hz

Frecuencia de afinación

Propiedades de la caja

Forma

Simple Rectangle

Grosor del material (mm)

16

Grosor del material (pulgada)

5/8

Dimensiones de la caja (mm)

566 × 329 × 296

Dimensiones de la caja (pulgadas)

22.22 × 12.96 × 11.67

Potencia RMS máxima de altavoz(es) hasta

2600 W

Capas del panel para el altavoz

Simple

Número de vías

1

Caja y altavoz

Caja

Reflejo de bajos

Configuración de altavoces

Único

Número de altavoces

1

Tamaño del altavoz

10"

Puerto

Tipo de puerto

Rectangular

Número de puertos

1

Área del puerto (mm²)

12668

Apariencias

Universal Vented / Bass-Reflex Subwoofer Box for 8-33-inch drivers with a light oak front panel, solid exterior.

Light Oak

Loudspeaker enclosure featuring a light oak front panel.

Universal Vented / Bass-Reflex Subwoofer Box for 8-33-inch drivers with a raw cherry wood front panel, solid exterior.

Raw Cherry

A speaker enclosure featuring a raw, unfinished cherry wood front panel.

Universal Vented / Bass-Reflex Subwoofer Box for 8-33-inch drivers with 12 mm rounded front edges, solid exterior.

12 mm Rounded Front Edges

The front edges of the enclosure feature a 12 mm radius rounding.

Universal Vented / Bass-Reflex Subwoofer Box for 8-33-inch drivers with a 12 mm front panel chamfer, solid exterior.

12 mm Front Panel Chamfer

The front panel features a 12 mm chamfered edge.
