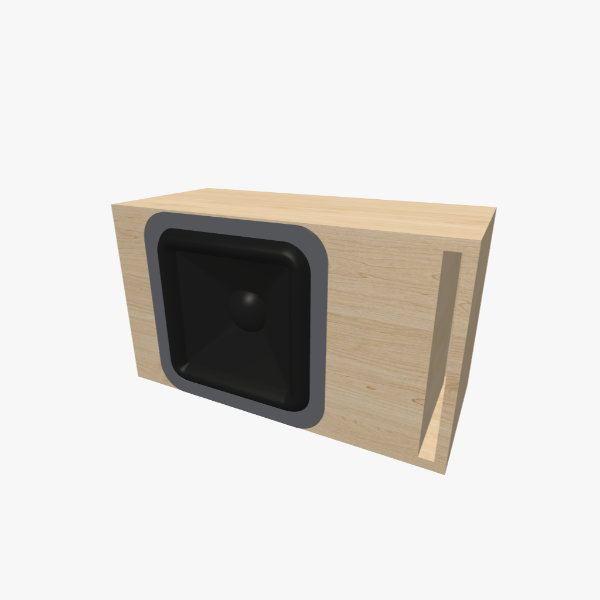

Single 12-inch Rectangular Vented / Bass-Reflex Subwoofer Box - 30 L / 35 Hz
Descripción
This Vented / Bass-Reflex enclosure is designed for a single 12-inch rectangular subwoofer and features a 30 L chamber tuned to 35 Hz. Built from 16 mm (5/8 inch) material in a simple rectangle shape, the cabinet measures 570 × 327 × 252 mm (22.4 × 12.88 × 9.95 in). It serves as a general-purpose home subwoofer enclosure for music and stereo systems, balancing bass extension, cabinet size, output, and low distortion. For car-audio use, it accounts for limited trunk space, installation constraints, and balanced sound. The design incorporates one L-shaped slot port with a port area suitable for drivers with moderate cone excursion and airflow demand.
Volumen y afinación
30 l
Volumen interno
35 Hz
Frecuencia de afinación
Propiedades de la caja
Forma
Simple Rectangle
Grosor del material (mm)
16
Grosor del material (pulgada)
5/8
Dimensiones de la caja (mm)
570 × 327 × 253
Dimensiones de la caja (pulgadas)
22.4 × 12.88 × 9.95
Potencia RMS máxima de altavoz(es) hasta
250 W
Capas del panel para el altavoz
Simple
Número de vías
1
Caja y altavoz
Caja
Reflejo de bajos
Configuración de altavoces
Único
Número de altavoces
1
Tamaño del altavoz
12" Rectangle
Puerto
Tipo de puerto
Rectangular
Número de puertos
1
Área del puerto (mm²)
6567
