Single 8-inch Vented / Bass-Reflex Subwoofer Box

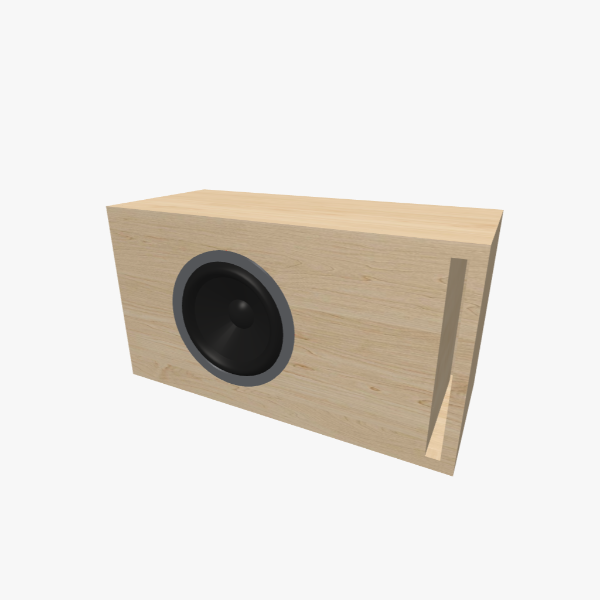

Single 8-inch round vented / bass-reflex subwoofer enclosure, 25 L tuned to 35 Hz with one L-shaped slot port, solid exterior, 561 × 303 × 243 mm (22.59 × 11.98 × 9.6 in).

Single 8-inch round vented / bass-reflex subwoofer enclosure, 25 L tuned to 35 Hz with one L-shaped slot port, disassembled parts, 561 × 303 × 243 mm (22.59 × 11.98 × 9.6 in).

Descrição

This simple rectangular cabinet is constructed from 18 mm (3/4 inch) material and is designed specifically for a single 8-inch round subwoofer. With external dimensions of 561 × 303 × 243 mm (22.59 × 11.98 × 9.6 in), the design is optimized for daily car-audio use where trunk space and installation constraints are key. It also serves as a general-purpose home subwoofer enclosure for music and stereo systems, balancing bass extension, cabinet size, output, and low distortion. The 25 L chamber is tuned to 35 Hz and features one L-shaped slot port. This port area is specifically suited for high-output drivers with increased cone excursion and airflow demand.

Volume e sintonia

25 l

Volume interno

35 Hz

Frequência de sintonia

Propriedades da caixa

Forma

Simple Rectangle

Espessura do material (mm)

Espessura do material (polegada)

3/4

Dimensões da caixa (mm)

562 × 304 × 244

Dimensões da caixa (polegadas)

22.59 × 11.98 × 9.6

Potência RMS máxima do(s) alto-falante(s) até

1200 W

Camadas do painel do alto-falante

Simples

Quantidade de vias

Caixa e alto-falante

Caixa

Duto

Configuração dos alto-falantes

Único

Quantidade de alto-falantes

Tamanho do alto-falante

Duto

Tipo de duto

Retangular

Quantidade de dutos

Área do duto (mm²)

5189

Aparências

Ver tudo

Light Oak

Loudspeaker enclosure featuring a light oak front panel.

Loudspeaker enclosure featuring an assembled front panel made of raw, unfinished cherry wood.

Raw Cherry

A speaker enclosure featuring a raw, unfinished cherry wood front panel.

12 mm Rounded Front Edges

The front edges of the enclosure feature a 12 mm radius rounding.

Loudspeaker enclosure showing a front panel with a 12 mm chamfered edge.

12 mm Front Panel Chamfer

The front panel features a 12 mm chamfered edge.
