Modelo universal de caixa

Dual 12-inch Round Ported Automotive Subwoofer Box - 80 L / 32 Hz - 927 × 380 × 380 mm

  1. Caixas prontas
  2. Dual 12-inch Round Ported Automotive Subwoofer Box - 80 L / 32 Hz - 927 × 380 × 380 mm
Usar no calculador

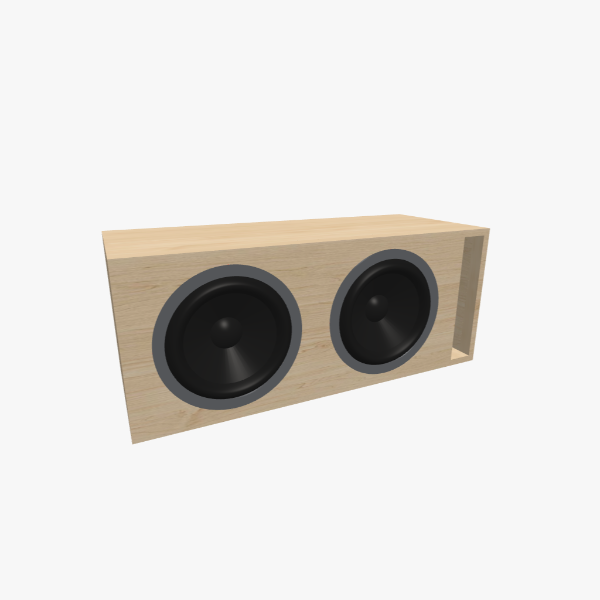

Dual 12-inch Round Vented / Bass-Reflex Subwoofer Box, 80 L volume, 32 Hz tuning, L-shaped slot port, solid exterior, 927 × 380 × 380 mm (37.17 × 15.01 × 15.01 in).
Dual 12-inch Round Vented / Bass-Reflex Subwoofer Box, 80 L volume, 32 Hz tuning, L-shaped slot port, solid exterior, 927 × 380 × 380 mm (37.17 × 15.01 × 15.01 in).
Dual 12-inch Round Vented / Bass-Reflex Subwoofer Box, 80 L volume, 32 Hz tuning, L-shaped slot port, solid exterior view, 927 × 380 × 380 mm (37.17 × 15.01 × 15.01 in).
Dual 12-inch Round Vented / Bass-Reflex Subwoofer Box, 80 L volume, 32 Hz tuning, L-shaped slot port, solid exterior perspective, 927 × 380 × 380 mm (37.17 × 15.01 × 15.01 in).
Dual 12-inch Round Vented / Bass-Reflex Subwoofer Box, 80 L volume, 32 Hz tuning, L-shaped slot port, solid exterior render, 927 × 380 × 380 mm (37.17 × 15.01 × 15.01 in).
Dual 12-inch Round Vented / Bass-Reflex Subwoofer Box, 80 L volume, 32 Hz tuning, L-shaped slot port, solid exterior side, 927 × 380 × 380 mm (37.17 × 15.01 × 15.01 in).
Dual 12-inch Round Vented / Bass-Reflex Subwoofer Box, 80 L volume, 32 Hz tuning, L-shaped slot port, solid exterior rear, 927 × 380 × 380 mm (37.17 × 15.01 × 15.01 in).
Dual 12-inch Round Vented / Bass-Reflex Subwoofer Box, 80 L volume, 32 Hz tuning, L-shaped slot port, solid exterior top, 927 × 380 × 380 mm (37.17 × 15.01 × 15.01 in).
Dual 12-inch Round Vented / Bass-Reflex Subwoofer Box, 80 L volume, 32 Hz tuning, L-shaped slot port, disassembled parts, 927 × 380 × 380 mm (37.17 × 15.01 × 15.01 in).

Descrição

This 80 L Vented / Bass-Reflex enclosure is designed for 2-driver 12-inch round subwoofer systems, tuned to 32 Hz for deep bass. Constructed from 18 mm (3/4 inch) material in a Simple Rectangle shape, it features a double-thickness front baffle to increase rigidity and reduce flex for high-output performance. The external dimensions are 927 × 380 × 380 mm (37.17 × 15.01 × 15.01 in). It utilizes one L-shaped slot port with an area suitable for high-output, large-excursion drivers and SPL-oriented demands. The design is ideal for everyday car-audio use, balancing installation constraints and trunk space, while also serving as a general-purpose home subwoofer enclosure for music and stereo systems with low distortion and balanced output.

Volume e sintonia

80 l
Volume interno
32 Hz
Frequência de sintonia

Propriedades da caixa

Forma
Simple Rectangle
Espessura do material (mm)
18
Espessura do material (polegada)
3/4
Dimensões da caixa (mm)
928 × 381 × 381
Dimensões da caixa (polegadas)
37.17 × 15.01 × 15.01
Potência RMS máxima do(s) alto-falante(s) até
190 W
Camadas do painel do alto-falante
Dupla
Quantidade de vias
1

Caixa e alto-falante

Caixa
Duto
Configuração dos alto-falantes
Múltiplo
Quantidade de alto-falantes
2
Tamanho do alto-falante
12"

Duto

Tipo de duto
Retangular
Quantidade de dutos
1
Área do duto (mm²)
23349
Aparências
Ver tudo
Single Vented Bass-Reflex Enclosure with 1 L-shaped slot port featuring a light oak front panel, solid exterior

Light Oak

Loudspeaker enclosure featuring a light oak front panel.

Single Vented Bass-Reflex Enclosure with 1 L-shaped slot port featuring a raw unfinished cherry wood front panel, solid exterior

Raw Cherry

A speaker enclosure featuring a raw, unfinished cherry wood front panel.

Single Vented Bass-Reflex Enclosure with 1 L-shaped slot port and 12 mm rounded front edges, solid exterior

12 mm Rounded Front Edges

The front edges of the enclosure feature a 12 mm radius rounding.

Single Vented Bass-Reflex Enclosure with 1 L-shaped slot port and 12 mm front panel chamfer, solid exterior

12 mm Front Panel Chamfer

The front panel features a 12 mm chamfered edge.
