Description

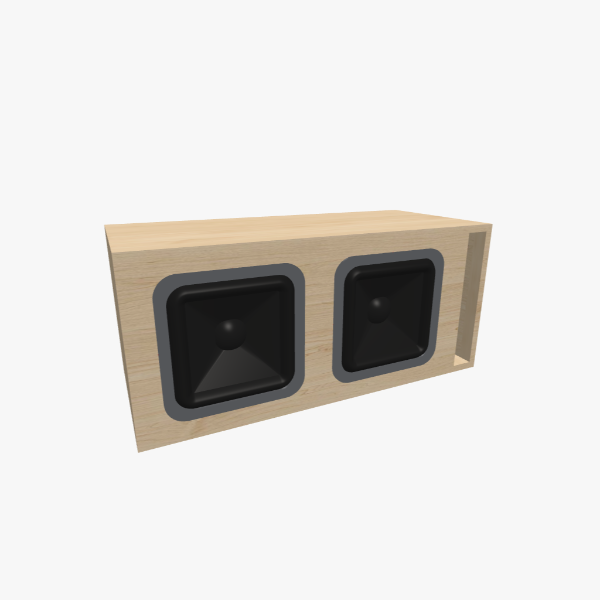

This Vented / Bass-Reflex enclosure is specifically designed for a 2-driver 10-inch subwoofer system, balancing bass extension, cabinet size, and low distortion for both home stereo systems and daily car-audio use. Built from 16 mm (5/8 inch) material in a Simple Rectangle shape, the cabinet features external dimensions of 782 × 349 × 349 mm (30.73 × 13.78 × 13.78 in). The 60 L chamber is tuned to 34 Hz and utilizes one L-shaped slot port with a port area optimized for high-output, large-excursion drivers and high-airflow SPL demands. For maximum rigidity and reduced panel flex in high-power setups, the design includes a double-thickness front baffle while remaining compact enough for limited trunk spaces.
Volume & tuning
60 l
Internal volume
34 Hz
Tuning frequency
Box properties
Shape
Simple Rectangle
Material thickness (mm)
16
Material thickness (inch)
5/8
Box dimensions (mm)
782 × 350 × 350
Box dimensions (inch)
30.73 × 13.78 × 13.78
Max RMS speaker power up to
400 W
Speaker mounting panel layers
Double
Number of bands
1
Enclosure & speaker
Enclosure
Vented
Speaker configuration
Multi
Number of speakers
2
Speaker size
10" Rectangle
Port
Port type
Rectangular
Port count
1
Port area (sq.mm)
16215
