Single 10-inch Vented / Bass-Reflex Subwoofer Box - 35 L / 35 Hz
Descripción

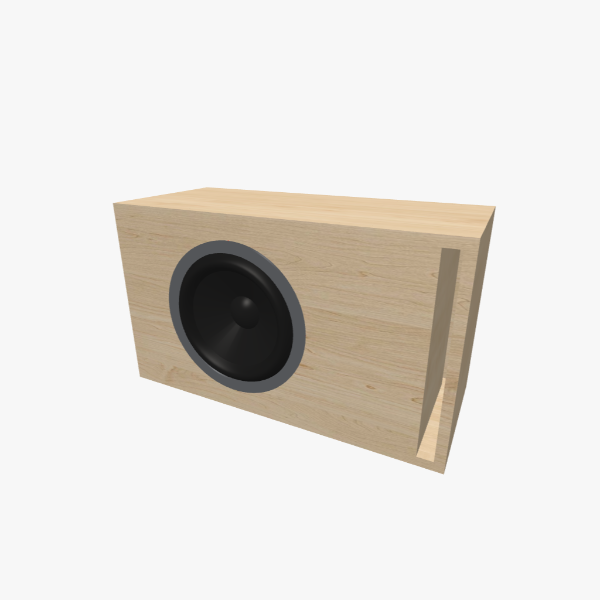

This vented (bass-reflex) enclosure is designed for a single 10-inch round subwoofer, featuring a 35 L chamber tuned to 35 Hz. Built from 16 mm (5/8 inch) material in a simple rectangle shape, the external dimensions are 599 × 349 × 261 mm (23.54 × 13.75 × 10.28 in). The design includes one L-shaped slot port with an area suitable for high-output drivers with increased cone excursion and airflow demand. This versatile cabinet is engineered for everyday car-audio use, accounting for limited trunk space and installation constraints, while also serving as a general-purpose home subwoofer enclosure for music and stereo systems that balances bass extension, cabinet size, output, and low distortion.
Volumen y afinación
35 l
Volumen interno
35 Hz
Frecuencia de afinación
Propiedades de la caja
Forma
Simple Rectangle
Grosor del material (mm)
16
Grosor del material (pulgada)
5/8
Dimensiones de la caja (mm)
599 × 349 × 261
Dimensiones de la caja (pulgadas)
23.54 × 13.75 × 10.28
Potencia RMS máxima de altavoz(es) hasta
450 W
Capas del panel para el altavoz
Simple
Número de vías
1
Caja y altavoz
Caja
Reflejo de bajos
Configuración de altavoces
Único
Número de altavoces
1
Tamaño del altavoz
10"
Puerto
Tipo de puerto
Rectangular
Número de puertos
1
Área del puerto (mm²)
8107
