Model

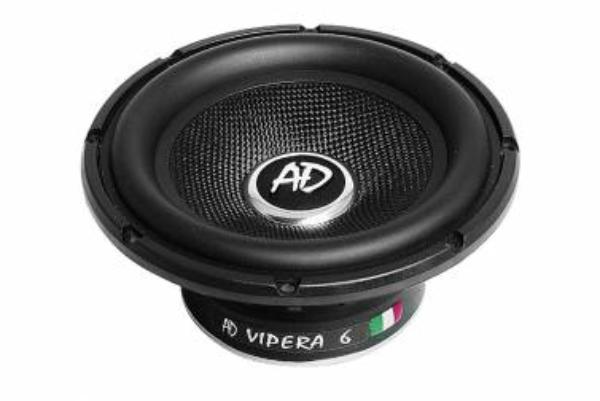

Audio Development(AD) AD VIPERA F6
Rating
DIAM
6"
FS(Hz)
47
VAS(l)
6.49
QTS
0.63
PWR(W)
300
SPL(dB)
81.4
IMP(Ohm)
4x1
avb
PROD
Parameter Thiele–Small
Fs(Hz)
47
Vas(l)
6.5
Qts
0.63
Qms
3.86
Qes
0.753
Bl(Tm)
7.1
Mms(gr)
37
Cms(mm/N)
0.307
Rms(kg/s)
2.861
Le(mH)
1
Re(Ohm)
3.4
Sd(sq.mm)
12200
Vd(l)
0.317
X-max(mm)
26
X-mech(mm)
0
Parameter Umum
Diameter (inch)
6
Daya Maksimum (W)
300
Daya RMS (W)
150
Jumlah Coil
1
Impedansi Z-Nom (Ohm)
4
Efisiensi referensi η0(%)
0.09
Sensitivitas (dB) 1-W
81.4
Sensitivitas (dB) 2.8-V
85.1
Informasi Pemasangan
Speaker Displacement (l)
0
Diameter Total (mm)
165
Diameter Cutout (mm)
141
Kedalaman Pemasangan (mm)
74
Diameter Magnet (mm)
102
Enclosure Optimum
Enclosure
Closed, Vented, BP4, BP6P
