Model

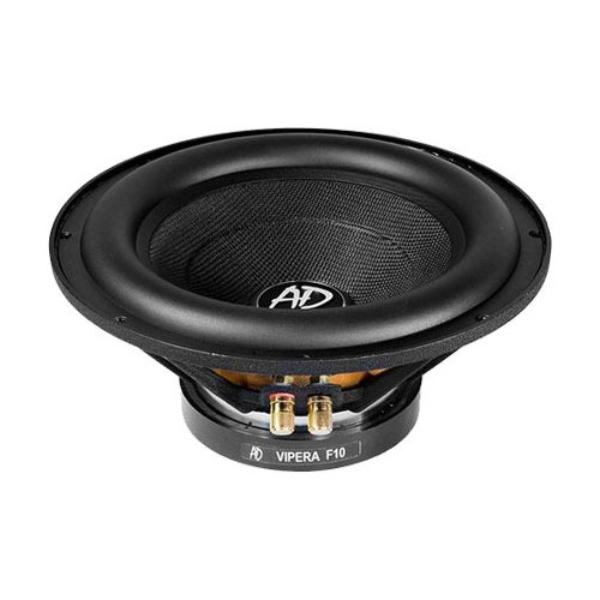

Audio Development(AD) VIPERA F10
Rating
DIAM
10"
FS(Hz)
35.8
VAS(l)
31.65
QTS
0.48
PWR(W)
400
SPL(dB)
86.2
IMP(Ohm)
4x1
avb
PROD
Parameter Thiele–Small
Fs(Hz)
35.8
Vas(l)
31.6
Qts
0.48
Qms
4.6
Qes
0.536
Bl(Tm)
10.7
Mms(gr)
91
Cms(mm/N)
0.218
Rms(kg/s)
4.44
Le(mH)
1.5
Re(Ohm)
3.2
Sd(sq.mm)
32000
Vd(l)
1.216
X-max(mm)
38
X-mech(mm)
0
Parameter Umum
Diameter (inch)
10
Daya Maksimum (W)
400
Daya RMS (W)
200
Jumlah Coil
1
Impedansi Z-Nom (Ohm)
4
Efisiensi referensi η0(%)
0.26
Sensitivitas (dB) 1-W
86.2
Sensitivitas (dB) 2.8-V
90.1
Informasi Pemasangan
Speaker Displacement (l)
0
Diameter Total (mm)
261
Diameter Cutout (mm)
230
Kedalaman Pemasangan (mm)
118
Diameter Magnet (mm)
134
Enclosure Optimum
Enclosure
Closed, Vented, BP4, BP6P
