Model

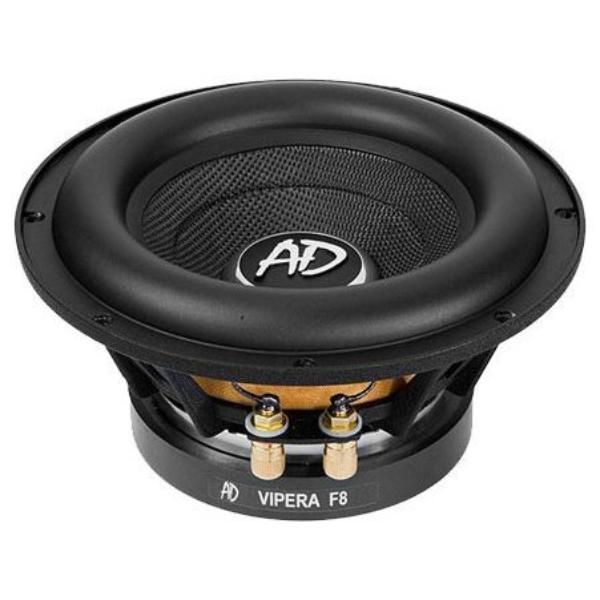

Audio Development(AD) VIPERA F8
Rating
DIAM
8"
FS(Hz)
37
VAS(l)
12
QTS
0.42
PWR(W)
400
SPL(dB)
82.9
IMP(Ohm)
4x1
avb
PROD
Parameter Thiele–Small
Fs(Hz)
37
Vas(l)
12
Qts
0.42
Qms
3.9
Qes
0.471
Bl(Tm)
11.1
Mms(gr)
77
Cms(mm/N)
0.239
Rms(kg/s)
4.64
Le(mH)
1.35
Re(Ohm)
3.2
Sd(sq.mm)
18815
Vd(l)
0.677
X-max(mm)
36
X-mech(mm)
0
Parameter Umum
Diameter (inch)
8
Daya Maksimum (W)
400
Daya RMS (W)
200
Jumlah Coil
1
Impedansi Z-Nom (Ohm)
4
Efisiensi referensi η0(%)
0.12
Sensitivitas (dB) 1-W
82.9
Sensitivitas (dB) 2.8-V
86.9
Informasi Pemasangan
Speaker Displacement (l)
0
Diameter Total (mm)
210
Diameter Cutout (mm)
183
Kedalaman Pemasangan (mm)
102
Diameter Magnet (mm)
134
Enclosure Optimum
Enclosure
Closed, Vented, BP4, BP6P
