Model

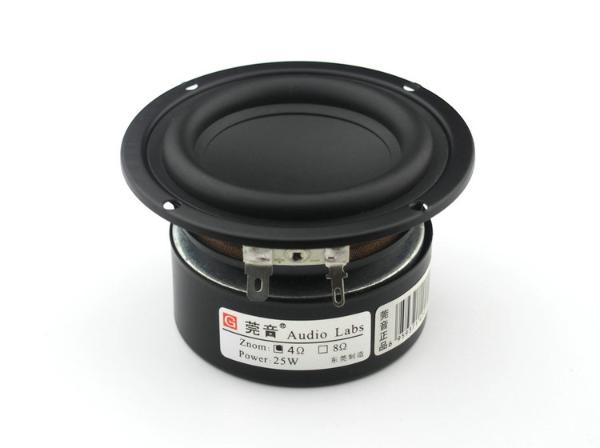

Audio Labs DL30TZF-01A
Rating
DIAM
3"
FS(Hz)
81.2
VAS(l)
2.5
QTS
0.62
PWR(W)
100
SPL(dB)
87
IMP(Ohm)
8x1
avb
PROD
Parameter Thiele–Small
Fs(Hz)
81.2
Vas(l)
2.5
Qts
0.62
Qms
5.04
Qes
0.71
Bl(Tm)
2
Mms(gr)
2
Cms(mm/N)
2.561
Rms(kg/s)
0.152
Le(mH)
0
Re(Ohm)
3.6
Sd(sq.mm)
2624
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
Parameter Umum
Diameter (inch)
3
Daya Maksimum (W)
100
Daya RMS (W)
25
Jumlah Coil
1
Impedansi Z-Nom (Ohm)
8
Efisiensi referensi η0(%)
0
Sensitivitas (dB) 1-W
87
Sensitivitas (dB) 2.8-V
0
Informasi Pemasangan
Speaker Displacement (l)
0.5
Diameter Total (mm)
0
Diameter Cutout (mm)
70
Kedalaman Pemasangan (mm)
57
Diameter Magnet (mm)
67
Enclosure Optimum
Enclosure
Vented, BP6P
