Model

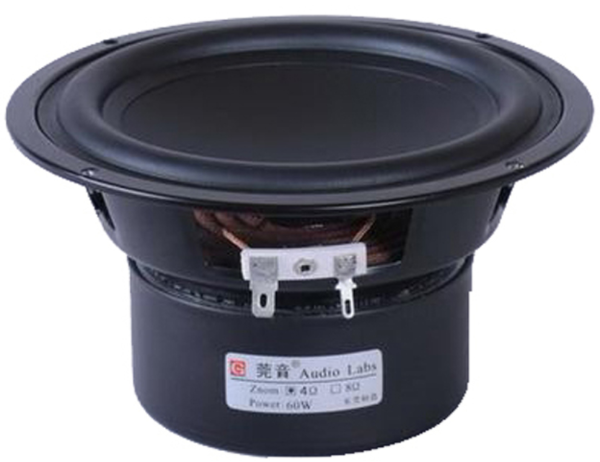

Audio Labs DL50TZF-01
Rating
DIAM
5"
FS(Hz)
47.5
VAS(l)
14.3
QTS
0.47
PWR(W)
60
SPL(dB)
86.6
IMP(Ohm)
4x1
avb
PROD
Parameter Thiele–Small
Fs(Hz)
47.5
Vas(l)
14.3
Qts
0.47
Qms
6.31
Qes
0.508
Bl(Tm)
4.5
Mms(gr)
10
Cms(mm/N)
1.169
Rms(kg/s)
0.454
Le(mH)
0
Re(Ohm)
3.6
Sd(sq.mm)
9287
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
Parameter Umum
Diameter (inch)
5
Daya Maksimum (W)
60
Daya RMS (W)
30
Jumlah Coil
1
Impedansi Z-Nom (Ohm)
4
Efisiensi referensi η0(%)
0.29
Sensitivitas (dB) 1-W
86.6
Sensitivitas (dB) 2.8-V
90.1
Informasi Pemasangan
Speaker Displacement (l)
0
Diameter Total (mm)
148
Diameter Cutout (mm)
120
Kedalaman Pemasangan (mm)
85
Diameter Magnet (mm)
88
Enclosure Optimum
Enclosure
Vented, BP6P
