Model

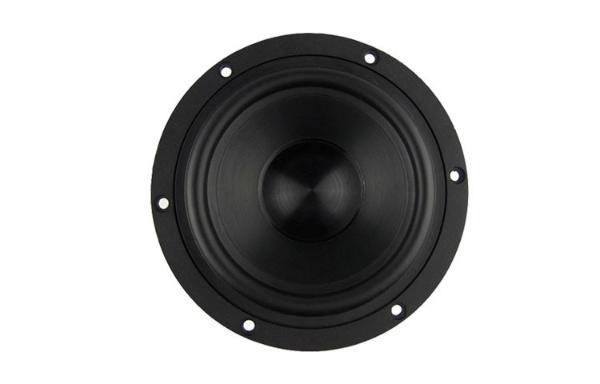

Audio Labs DL65LTB-01
Rating
DIAM
6"
FS(Hz)
43.4
VAS(l)
19.8
QTS
0.32
PWR(W)
60
SPL(dB)
88.2
IMP(Ohm)
4x1
avb
PROD
Parameter Thiele–Small
Fs(Hz)
43.4
Vas(l)
19.8
Qts
0.32
Qms
2.09
Qes
0.378
Bl(Tm)
6.7
Mms(gr)
17
Cms(mm/N)
0.782
Rms(kg/s)
2.244
Le(mH)
0.3
Re(Ohm)
3.6
Sd(sq.mm)
13361
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
Parameter Umum
Diameter (inch)
6
Daya Maksimum (W)
60
Daya RMS (W)
40
Jumlah Coil
1
Impedansi Z-Nom (Ohm)
4
Efisiensi referensi η0(%)
0.41
Sensitivitas (dB) 1-W
88.2
Sensitivitas (dB) 2.8-V
91.7
Informasi Pemasangan
Speaker Displacement (l)
0
Diameter Total (mm)
176
Diameter Cutout (mm)
147
Kedalaman Pemasangan (mm)
84
Diameter Magnet (mm)
0
Enclosure Optimum
Enclosure
Vented, BP6P
