Model

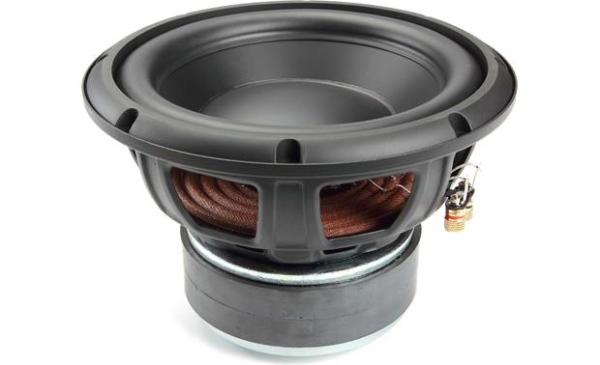

Audiofrog GS10D4
Rating
DIAM
10"
FS(Hz)
34
VAS(l)
26.33
QTS
0.47
PWR(W)
1200
SPL(dB)
85
IMP(Ohm)
4x2
avb
UNK
Parameter Thiele–Small
Fs(Hz)
34
Vas(l)
26.3
Qts
0.47
Qms
7.4
Qes
0.5
Bl(Tm)
11.2
Mms(gr)
143
Cms(mm/N)
0.153
Rms(kg/s)
4.16
Le(mH)
1
Re(Ohm)
2.1
Sd(sq.mm)
34834
Vd(l)
0.554
X-max(mm)
16
X-mech(mm)
0
Parameter Umum
Diameter (inch)
10
Daya Maksimum (W)
1200
Daya RMS (W)
400
Jumlah Coil
2
Impedansi Z-Nom (Ohm)
4
Efisiensi referensi η0(%)
0.2
Sensitivitas (dB) 1-W
85
Sensitivitas (dB) 2.8-V
90.8
Informasi Pemasangan
Speaker Displacement (l)
0
Diameter Total (mm)
269
Diameter Cutout (mm)
234
Kedalaman Pemasangan (mm)
169
Diameter Magnet (mm)
0
Enclosure Optimum
Enclosure
BP4, BP6P, Closed, Vented
