Model

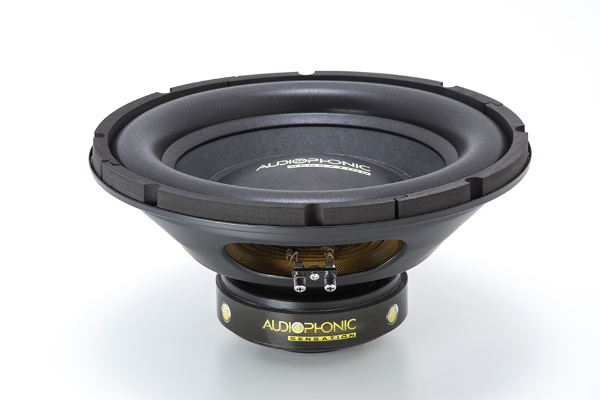

Audiophonic S1-12S2
Rating
DIAM
12"
FS(Hz)
37
VAS(l)
33.05
QTS
0.66
PWR(W)
500
SPL(dB)
85.4
IMP(Ohm)
2x1
avb
PROD
Parameter Thiele–Small
Fs(Hz)
37
Vas(l)
33
Qts
0.66
Qms
6.39
Qes
0.74
Bl(Tm)
11.2
Mms(gr)
179
Cms(mm/N)
0.104
Rms(kg/s)
6.501
Le(mH)
1.62
Re(Ohm)
2.2
Sd(sq.mm)
48300
Vd(l)
0.483
X-max(mm)
10
X-mech(mm)
0
Parameter Umum
Diameter (inch)
12
Daya Maksimum (W)
500
Daya RMS (W)
250
Jumlah Coil
1
Impedansi Z-Nom (Ohm)
2
Efisiensi referensi η0(%)
0.22
Sensitivitas (dB) 1-W
85.4
Sensitivitas (dB) 2.8-V
91
Informasi Pemasangan
Speaker Displacement (l)
0
Diameter Total (mm)
0
Diameter Cutout (mm)
0
Kedalaman Pemasangan (mm)
0
Diameter Magnet (mm)
0
Enclosure Optimum
Enclosure
BP4, Closed
