Model

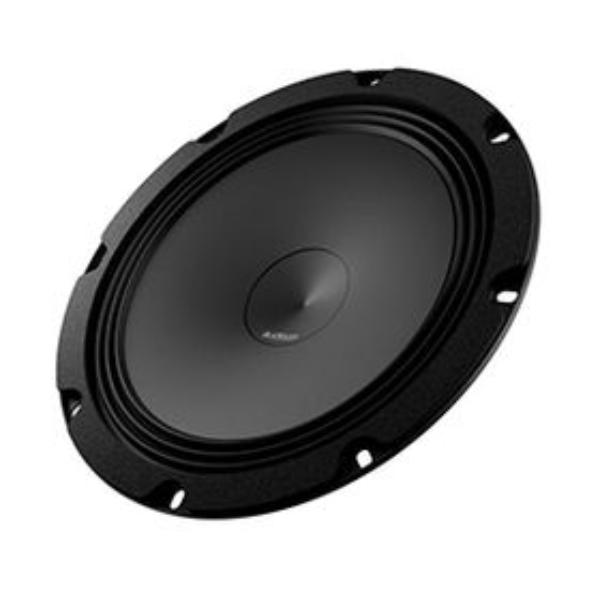

Audison AP 8 (PRIMA)
Rating
DIAM
8"
FS(Hz)
60
VAS(l)
20
QTS
0.7
PWR(W)
300
SPL(dB)
89.2
IMP(Ohm)
4x1
avb
PROD
Beberapa parameter memiliki deviasi dari parameter terkait. Lihat tanda seru untuk mendapatkan saran.
Parameter Thiele–Small
Fs(Hz)
60
Vas(l)
20
Qts
0.7
Qms
5
Qes
0.8
Bl(Tm)
5.4
Mms(gr)
19
Cms(mm/N)
0.37
Rms(kg/s)
1.43
Le(mH)
0.3
Re(Ohm)
3.1
Sd(sq.mm)
19523
Vd(l)
0.064
X-max(mm)
3
X-mech(mm)
0
Parameter Umum
Diameter (inch)
8
Daya Maksimum (W)
300
Daya RMS (W)
100
Jumlah Coil
1
Impedansi Z-Nom (Ohm)
4
Efisiensi referensi η0(%)
0.52
Sensitivitas (dB) 1-W
89.2
Sensitivitas (dB) 2.8-V
93.3
Informasi Pemasangan
Speaker Displacement (l)
0
Diameter Total (mm)
209
Diameter Cutout (mm)
174
Kedalaman Pemasangan (mm)
70
Diameter Magnet (mm)
90
Enclosure Optimum
Enclosure
BP4, BP6P, Closed, Vented
