Model

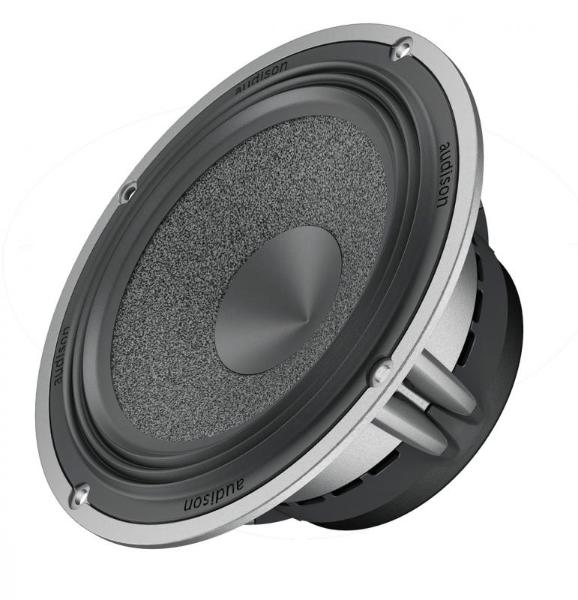

Audison AV 6.5
Rating
DIAM
6"
FS(Hz)
68
VAS(l)
8.18
QTS
0.74
PWR(W)
200
SPL(dB)
86.8
IMP(Ohm)
4x1
avb
PROD
Parameter Thiele–Small
Fs(Hz)
68
Vas(l)
8.2
Qts
0.74
Qms
7.84
Qes
0.82
Bl(Tm)
5.5
Mms(gr)
16
Cms(mm/N)
0.34
Rms(kg/s)
0.88
Le(mH)
0
Re(Ohm)
3.5
Sd(sq.mm)
13024
Vd(l)
0.039
X-max(mm)
3
X-mech(mm)
0
Parameter Umum
Diameter (inch)
6
Daya Maksimum (W)
200
Daya RMS (W)
100
Jumlah Coil
1
Impedansi Z-Nom (Ohm)
4
Efisiensi referensi η0(%)
0
Sensitivitas (dB) 1-W
86.8
Sensitivitas (dB) 2.8-V
0
Informasi Pemasangan
Speaker Displacement (l)
0
Diameter Total (mm)
0
Diameter Cutout (mm)
146
Kedalaman Pemasangan (mm)
69
Diameter Magnet (mm)
0
Enclosure Optimum
Enclosure
BP4, BP6P, Closed, Vented
