Model

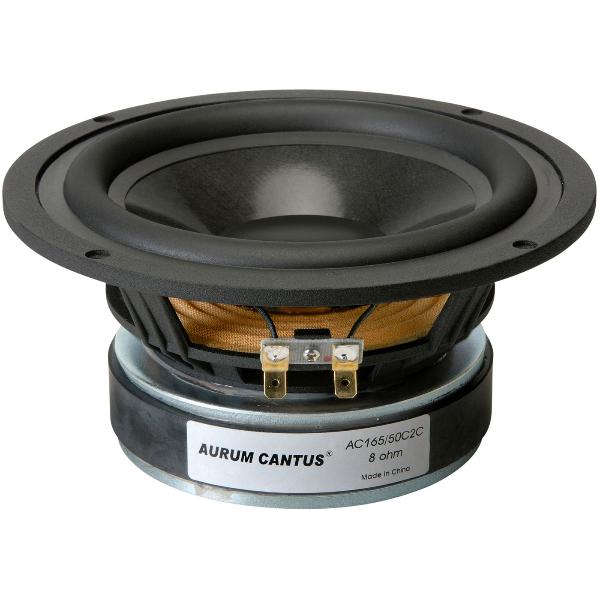

Aurum Cantus AC165/50C2C
Rating
DIAM
6"
FS(Hz)
37
VAS(l)
32
QTS
0.19
PWR(W)
225
SPL(dB)
90.9
IMP(Ohm)
8x1
avb
PROD
Parameter Thiele–Small
Fs(Hz)
37
Vas(l)
32
Qts
0.19
Qms
4.22
Qes
0.2
Bl(Tm)
10.8
Mms(gr)
14
Cms(mm/N)
1.294
Rms(kg/s)
0.788
Le(mH)
0
Re(Ohm)
7
Sd(sq.mm)
13300
Vd(l)
0.08
X-max(mm)
6
X-mech(mm)
0
Parameter Umum
Diameter (inch)
6
Daya Maksimum (W)
225
Daya RMS (W)
150
Jumlah Coil
1
Impedansi Z-Nom (Ohm)
8
Efisiensi referensi η0(%)
0.8
Sensitivitas (dB) 1-W
90.9
Sensitivitas (dB) 2.8-V
91.5
Informasi Pemasangan
Speaker Displacement (l)
0
Diameter Total (mm)
0
Diameter Cutout (mm)
146
Kedalaman Pemasangan (mm)
83
Diameter Magnet (mm)
0
Enclosure Optimum
Enclosure
Vented, BP6P
