Model

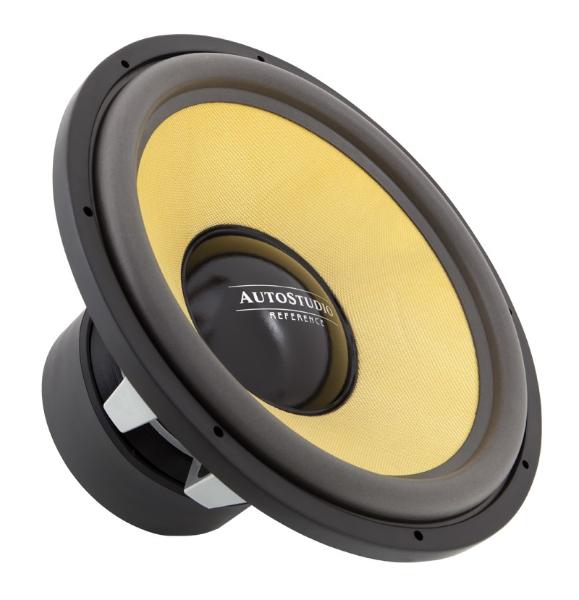

Autostudio AS-REF18D1 UNL 18
Rating
DIAM
18"
FS(Hz)
54.8
VAS(l)
40.92
QTS
0.87
PWR(W)
4000
SPL(dB)
90.4
IMP(Ohm)
1x2
avb
NOPROD
Beberapa parameter memiliki deviasi dari parameter terkait. Lihat tanda seru untuk mendapatkan saran.
Parameter Thiele–Small
Fs(Hz)
54.8
Vas(l)
40.9
Qts
0.871
Qms
13.9
Qes
0.929
Bl(Tm)
9.1
Mms(gr)
497
Cms(mm/N)
0.017
Rms(kg/s)
12.3
Le(mH)
0.69
Re(Ohm)
0.5
Sd(sq.mm)
130276
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
Parameter Umum
Diameter (inch)
18
Daya Maksimum (W)
4000
Daya RMS (W)
2000
Jumlah Coil
2
Impedansi Z-Nom (Ohm)
1
Efisiensi referensi η0(%)
0.7
Sensitivitas (dB) 1-W
90.4
Sensitivitas (dB) 2.8-V
102.9
Informasi Pemasangan
Speaker Displacement (l)
0
Diameter Total (mm)
470
Diameter Cutout (mm)
425
Kedalaman Pemasangan (mm)
250
Diameter Magnet (mm)
230
Enclosure Optimum
Enclosure
BP4, BP6P, Closed, Vented
