Model

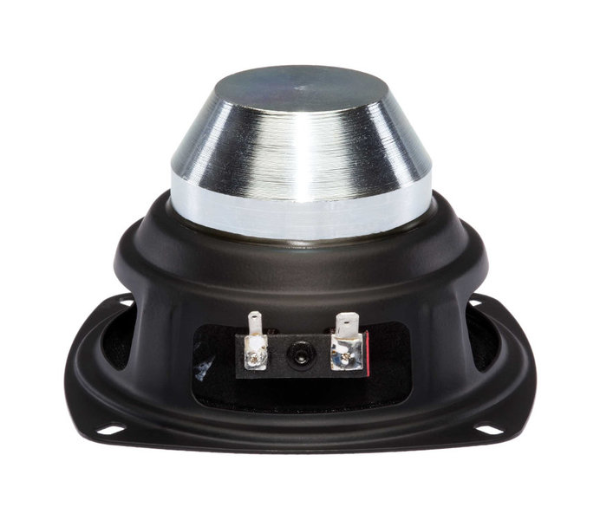

B&C Speakers 4NDF34
Rating
DIAM
4"
FS(Hz)
110
VAS(l)
1.6
QTS
0.28
PWR(W)
200
SPL(dB)
90.4
IMP(Ohm)
8x1
avb
PROD
Parameter Thiele–Small
Fs(Hz)
110
Vas(l)
1.6
Qts
0.28
Qms
4.2
Qes
0.3
Bl(Tm)
9
Mms(gr)
6
Cms(mm/N)
0.349
Rms(kg/s)
0.987
Le(mH)
0.23
Re(Ohm)
5.5
Sd(sq.mm)
5700
Vd(l)
0.022
X-max(mm)
4
X-mech(mm)
6
Parameter Umum
Diameter (inch)
4
Daya Maksimum (W)
200
Daya RMS (W)
100
Jumlah Coil
1
Impedansi Z-Nom (Ohm)
8
Efisiensi referensi η0(%)
0.68
Sensitivitas (dB) 1-W
90.4
Sensitivitas (dB) 2.8-V
92
Informasi Pemasangan
Speaker Displacement (l)
0.25
Diameter Total (mm)
127
Diameter Cutout (mm)
103
Kedalaman Pemasangan (mm)
66
Diameter Magnet (mm)
0
Enclosure Optimum
Enclosure
Vented, BP6P
