Model

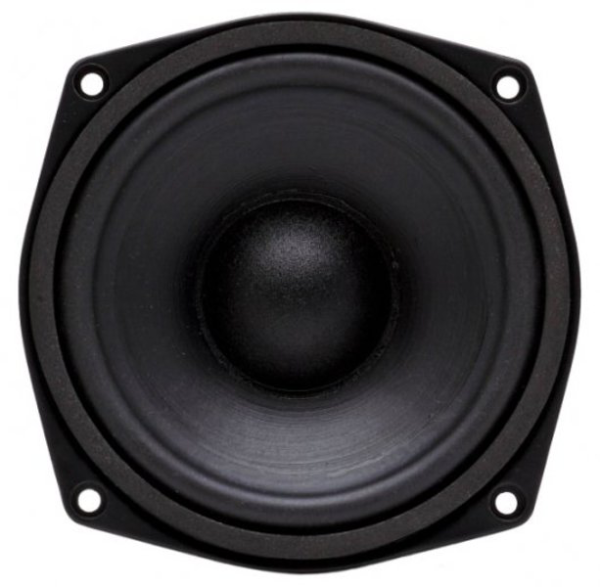

B&C Speakers 5NDL38
Rating
DIAM
5"
FS(Hz)
80
VAS(l)
4.3
QTS
0.36
PWR(W)
180
SPL(dB)
89.5
IMP(Ohm)
8x1
avb
PROD
Parameter Thiele–Small
Fs(Hz)
80
Vas(l)
4.3
Qts
0.36
Qms
9.2
Qes
0.375
Bl(Tm)
9.2
Mms(gr)
11
Cms(mm/N)
0.36
Rms(kg/s)
0.601
Le(mH)
0.64
Re(Ohm)
5.5
Sd(sq.mm)
9500
Vd(l)
0.033
X-max(mm)
4
X-mech(mm)
4
Parameter Umum
Diameter (inch)
5
Daya Maksimum (W)
180
Daya RMS (W)
90
Jumlah Coil
1
Impedansi Z-Nom (Ohm)
8
Efisiensi referensi η0(%)
0.57
Sensitivitas (dB) 1-W
89.5
Sensitivitas (dB) 2.8-V
91
Informasi Pemasangan
Speaker Displacement (l)
0.35
Diameter Total (mm)
155
Diameter Cutout (mm)
122
Kedalaman Pemasangan (mm)
66
Diameter Magnet (mm)
70
Enclosure Optimum
Enclosure
Vented, BP6P
