Model

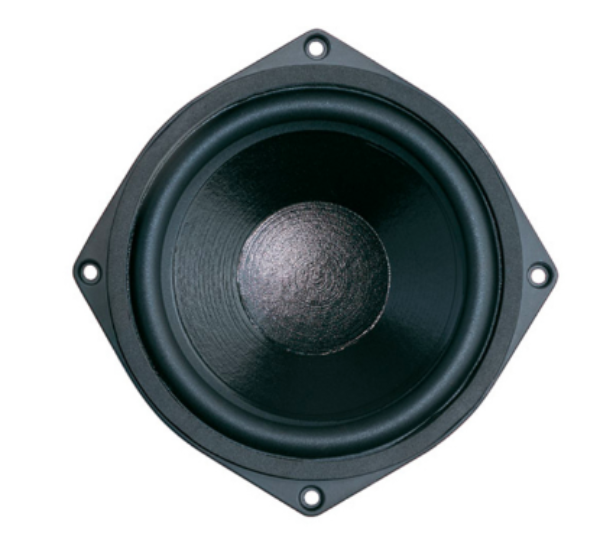

B&C Speakers 6NDL38
Rating
DIAM
6"
FS(Hz)
69
VAS(l)
7.1
QTS
0.39
PWR(W)
300
SPL(dB)
89.4
IMP(Ohm)
4x1
avb
PROD
Parameter Thiele–Small
Fs(Hz)
69
Vas(l)
7.1
Qts
0.39
Qms
10.05
Qes
0.406
Bl(Tm)
7.8
Mms(gr)
18
Cms(mm/N)
0.296
Rms(kg/s)
0.776
Le(mH)
0.4
Re(Ohm)
3.2
Sd(sq.mm)
13200
Vd(l)
0.079
X-max(mm)
6
X-mech(mm)
0
Parameter Umum
Diameter (inch)
6
Daya Maksimum (W)
300
Daya RMS (W)
150
Jumlah Coil
1
Impedansi Z-Nom (Ohm)
4
Efisiensi referensi η0(%)
0.55
Sensitivitas (dB) 1-W
89.4
Sensitivitas (dB) 2.8-V
93.4
Informasi Pemasangan
Speaker Displacement (l)
0.63
Diameter Total (mm)
187
Diameter Cutout (mm)
145
Kedalaman Pemasangan (mm)
85
Diameter Magnet (mm)
0
Enclosure Optimum
Enclosure
Vented, BP6P
