Model

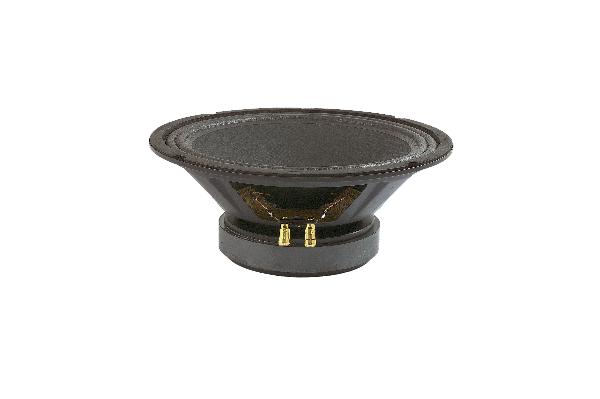

Bassface PAW10.1
Rating
DIAM
10"
FS(Hz)
70.2
VAS(l)
22.4
QTS
0.71
PWR(W)
400
SPL(dB)
91.3
IMP(Ohm)
4x1
avb
PROD
Parameter Thiele–Small
Fs(Hz)
70.2
Vas(l)
22.4
Qts
0.706
Qms
3.6
Qes
0.878
Bl(Tm)
11.5
Mms(gr)
41
Cms(mm/N)
0.127
Rms(kg/s)
4.97
Le(mH)
0.3
Re(Ohm)
6.5
Sd(sq.mm)
35265
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
Parameter Umum
Diameter (inch)
10
Daya Maksimum (W)
400
Daya RMS (W)
200
Jumlah Coil
1
Impedansi Z-Nom (Ohm)
4
Efisiensi referensi η0(%)
0.85
Sensitivitas (dB) 1-W
91.3
Sensitivitas (dB) 2.8-V
92.2
Informasi Pemasangan
Speaker Displacement (l)
0
Diameter Total (mm)
255
Diameter Cutout (mm)
232
Kedalaman Pemasangan (mm)
98
Diameter Magnet (mm)
141
Enclosure Optimum
Enclosure
Closed, Vented, BP4, BP6P
