Model

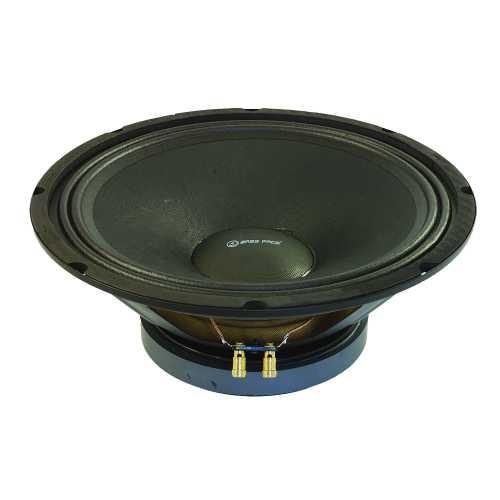

Bassface PAW12.1
Rating
DIAM
12"
FS(Hz)
55
VAS(l)
70.381
QTS
0.67
PWR(W)
600
SPL(dB)
93
IMP(Ohm)
8x1
avb
PROD
Parameter Thiele–Small
Fs(Hz)
55
Vas(l)
70.4
Qts
0.665
Qms
2.547
Qes
0.9
Bl(Tm)
10.9
Mms(gr)
47
Cms(mm/N)
0.176
Rms(kg/s)
6.449
Le(mH)
0.6
Re(Ohm)
6.5
Sd(sq.mm)
53100
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
Parameter Umum
Diameter (inch)
12
Daya Maksimum (W)
600
Daya RMS (W)
300
Jumlah Coil
1
Impedansi Z-Nom (Ohm)
8
Efisiensi referensi η0(%)
1.26
Sensitivitas (dB) 1-W
93
Sensitivitas (dB) 2.8-V
93.9
Informasi Pemasangan
Speaker Displacement (l)
0
Diameter Total (mm)
311
Diameter Cutout (mm)
284
Kedalaman Pemasangan (mm)
113
Diameter Magnet (mm)
172
Enclosure Optimum
Enclosure
Closed, Vented, BP4, BP6P
