Model

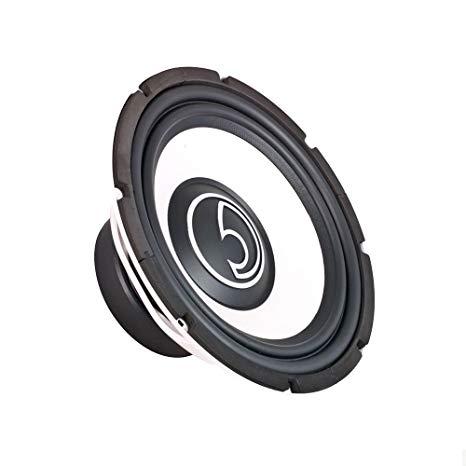

Bassface SPL12.1.4
Rating
DIAM
12"
FS(Hz)
35.8
VAS(l)
83.845
QTS
0.51
PWR(W)
1200
SPL(dB)
90.1
IMP(Ohm)
4x1
avb
NOPROD
Parameter Thiele–Small
Fs(Hz)
35.8
Vas(l)
83.8
Qts
0.511
Qms
4.668
Qes
0.574
Bl(Tm)
10.6
Mms(gr)
91
Cms(mm/N)
0.219
Rms(kg/s)
4.28
Le(mH)
0
Re(Ohm)
3.2
Sd(sq.mm)
51875
Vd(l)
0.571
X-max(mm)
11
X-mech(mm)
0
Parameter Umum
Diameter (inch)
12
Daya Maksimum (W)
1200
Daya RMS (W)
600
Jumlah Coil
1
Impedansi Z-Nom (Ohm)
4
Efisiensi referensi η0(%)
0.65
Sensitivitas (dB) 1-W
90.1
Sensitivitas (dB) 2.8-V
94.1
Informasi Pemasangan
Speaker Displacement (l)
0
Diameter Total (mm)
0
Diameter Cutout (mm)
0
Kedalaman Pemasangan (mm)
0
Diameter Magnet (mm)
0
Enclosure Optimum
Enclosure
Closed, Vented, BP4, BP6P
