Model

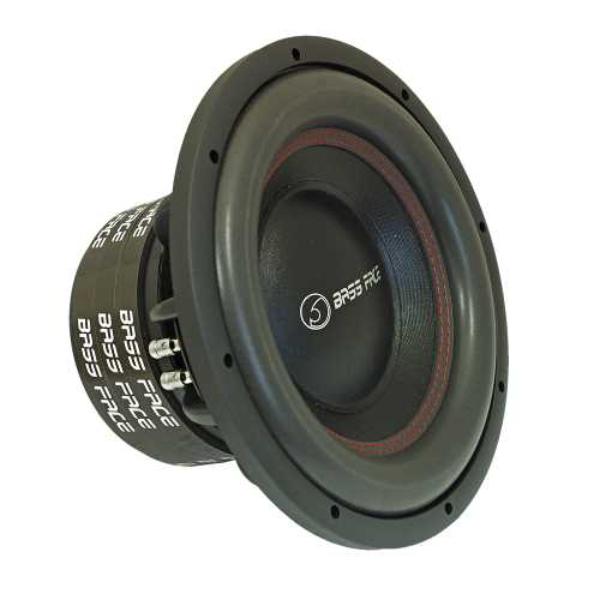

Bassface SPL12.4
Rating
DIAM
12"
FS(Hz)
53.7
VAS(l)
9.558
QTS
0.95
PWR(W)
5000
SPL(dB)
83.3
IMP(Ohm)
2x2
avb
PROD
Parameter Thiele–Small
Fs(Hz)
53.7
Vas(l)
9.6
Qts
0.947
Qms
9.189
Qes
1.056
Bl(Tm)
14.1
Mms(gr)
310
Cms(mm/N)
0.028
Rms(kg/s)
11.364
Le(mH)
0.49
Re(Ohm)
2
Sd(sq.mm)
48695
Vd(l)
0.972
X-max(mm)
20
X-mech(mm)
0
Parameter Umum
Diameter (inch)
12
Daya Maksimum (W)
5000
Daya RMS (W)
2500
Jumlah Coil
2
Impedansi Z-Nom (Ohm)
2
Efisiensi referensi η0(%)
0.14
Sensitivitas (dB) 1-W
83.3
Sensitivitas (dB) 2.8-V
89.3
Informasi Pemasangan
Speaker Displacement (l)
0
Diameter Total (mm)
323
Diameter Cutout (mm)
280
Kedalaman Pemasangan (mm)
210
Diameter Magnet (mm)
185
Enclosure Optimum
Enclosure
Closed, BP4
