Model

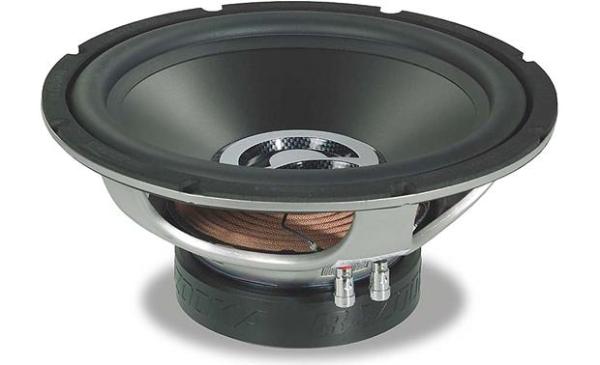

Bazooka ELW1214.2
Rating
DIAM
12"
FS(Hz)
30
VAS(l)
87.7
QTS
0.36
PWR(W)
300
SPL(dB)
89.7
IMP(Ohm)
4x1
avb
NOPROD
Parameter Thiele–Small
Fs(Hz)
30
Vas(l)
87.7
Qts
0.36
Qms
4.98
Qes
0.39
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
1.4
Re(Ohm)
3.6
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
Parameter Umum
Diameter (inch)
12
Daya Maksimum (W)
300
Daya RMS (W)
200
Jumlah Coil
1
Impedansi Z-Nom (Ohm)
4
Efisiensi referensi η0(%)
0.59
Sensitivitas (dB) 1-W
89.7
Sensitivitas (dB) 2.8-V
93.2
Informasi Pemasangan
Speaker Displacement (l)
0
Diameter Total (mm)
0
Diameter Cutout (mm)
0
Kedalaman Pemasangan (mm)
0
Diameter Magnet (mm)
0
Enclosure Optimum
Enclosure
Closed, Vented, BP4, BP6P
