Model

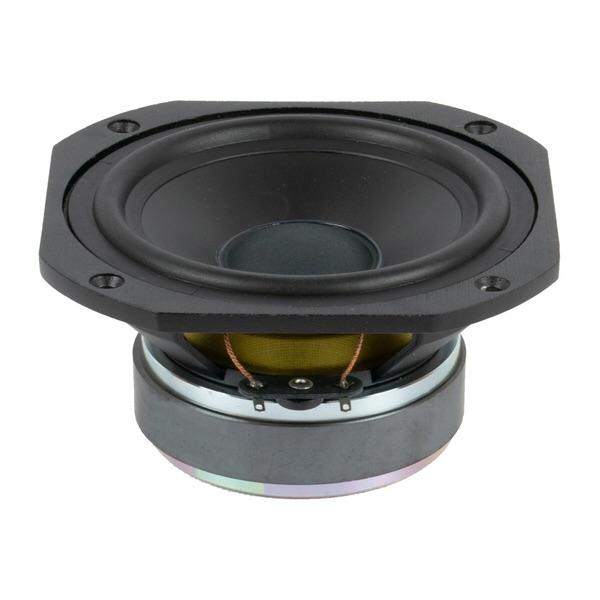

Beyma 5MP60/N
Rating
DIAM
5"
FS(Hz)
63
VAS(l)
5.77
QTS
0.46
PWR(W)
100
SPL(dB)
85.8
IMP(Ohm)
8x1
avb
PROD
Parameter Thiele–Small
Fs(Hz)
63
Vas(l)
5.8
Qts
0.46
Qms
2.3
Qes
0.575
Bl(Tm)
6.4
Mms(gr)
11
Cms(mm/N)
0.564
Rms(kg/s)
1.945
Le(mH)
0
Re(Ohm)
5.7
Sd(sq.mm)
8493
Vd(l)
0.034
X-max(mm)
6
X-mech(mm)
0
Parameter Umum
Diameter (inch)
5
Daya Maksimum (W)
100
Daya RMS (W)
50
Jumlah Coil
1
Impedansi Z-Nom (Ohm)
8
Efisiensi referensi η0(%)
0
Sensitivitas (dB) 1-W
85.8
Sensitivitas (dB) 2.8-V
0
Informasi Pemasangan
Speaker Displacement (l)
0
Diameter Total (mm)
0
Diameter Cutout (mm)
120
Kedalaman Pemasangan (mm)
60
Diameter Magnet (mm)
90
Enclosure Optimum
Enclosure
Vented, BP6P
