Model

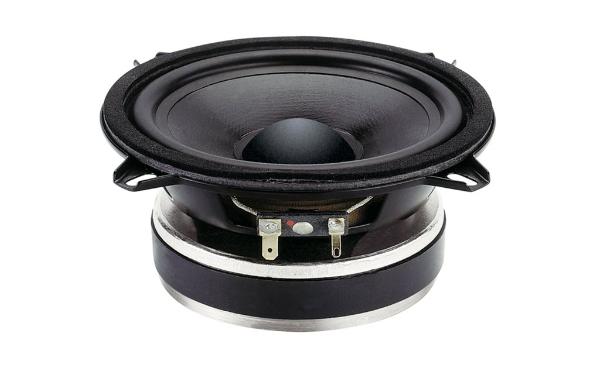

Ciare CW131
Rating
DIAM
5"
FS(Hz)
65
VAS(l)
5.3
QTS
0.39
PWR(W)
180
SPL(dB)
86.9
IMP(Ohm)
4x1
avb
PROD
Parameter Thiele–Small
Fs(Hz)
65
Vas(l)
5.3
Qts
0.39
Qms
2.7
Qes
0.45
Bl(Tm)
5.7
Mms(gr)
10
Cms(mm/N)
0.61
Rms(kg/s)
1.47
Le(mH)
0.43
Re(Ohm)
3.7
Sd(sq.mm)
7827
Vd(l)
0.02
X-max(mm)
3
X-mech(mm)
0
Parameter Umum
Diameter (inch)
5
Daya Maksimum (W)
180
Daya RMS (W)
70
Jumlah Coil
1
Impedansi Z-Nom (Ohm)
4
Efisiensi referensi η0(%)
0.31
Sensitivitas (dB) 1-W
86.9
Sensitivitas (dB) 2.8-V
90.3
Informasi Pemasangan
Speaker Displacement (l)
0
Diameter Total (mm)
130
Diameter Cutout (mm)
112
Kedalaman Pemasangan (mm)
62
Diameter Magnet (mm)
102
Enclosure Optimum
Enclosure
BP6P, Vented
