Model

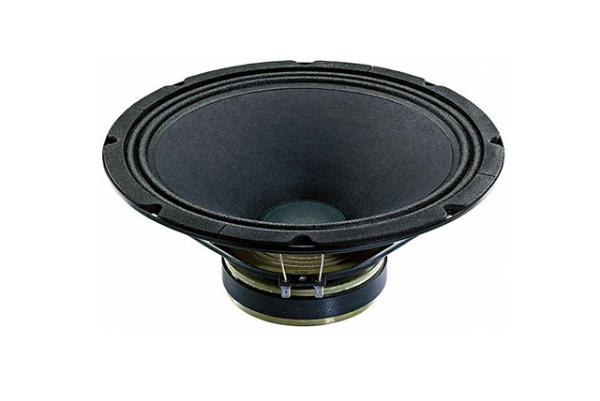

Ciare PW328
Rating
DIAM
12"
FS(Hz)
48
VAS(l)
91
QTS
0.32
PWR(W)
300
SPL(dB)
96.3
IMP(Ohm)
8x1
avb
PROD
Parameter Thiele–Small
Fs(Hz)
48
Vas(l)
91
Qts
0.32
Qms
3.08
Qes
0.357
Bl(Tm)
15
Mms(gr)
49
Cms(mm/N)
0.227
Rms(kg/s)
4.749
Le(mH)
0.82
Re(Ohm)
5.5
Sd(sq.mm)
53166
Vd(l)
0.159
X-max(mm)
3
X-mech(mm)
0
Parameter Umum
Diameter (inch)
12
Daya Maksimum (W)
300
Daya RMS (W)
150
Jumlah Coil
1
Impedansi Z-Nom (Ohm)
8
Efisiensi referensi η0(%)
2.72
Sensitivitas (dB) 1-W
96.3
Sensitivitas (dB) 2.8-V
97.9
Informasi Pemasangan
Speaker Displacement (l)
0
Diameter Total (mm)
315
Diameter Cutout (mm)
0
Kedalaman Pemasangan (mm)
116
Diameter Magnet (mm)
134
Enclosure Optimum
Enclosure
BP6P, Vented
