Model

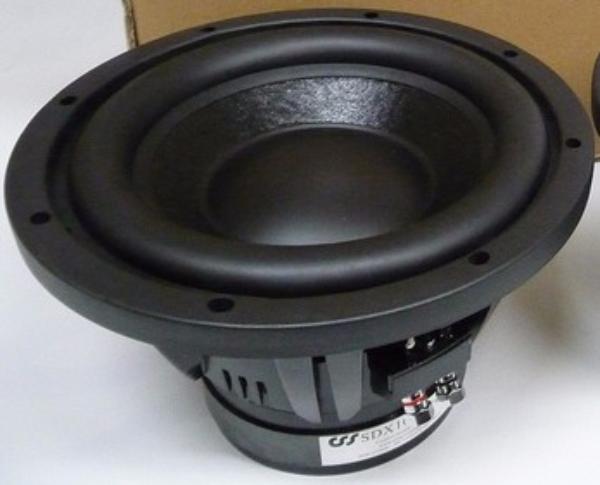

Creative Sound Solutions, LLC SDX10
Rating
DIAM
10"
FS(Hz)
26
VAS(l)
53
QTS
0.42
PWR(W)
1000
SPL(dB)
84.8
IMP(Ohm)
4x1
avb
PROD
Parameter Thiele–Small
Fs(Hz)
26
Vas(l)
53
Qts
0.421
Qms
4
Qes
0.47
Bl(Tm)
11.8
Mms(gr)
112
Cms(mm/N)
0.335
Rms(kg/s)
4.574
Le(mH)
0
Re(Ohm)
3.6
Sd(sq.mm)
33000
Vd(l)
0.607
X-max(mm)
18
X-mech(mm)
0
Parameter Umum
Diameter (inch)
10
Daya Maksimum (W)
1000
Daya RMS (W)
500
Jumlah Coil
1
Impedansi Z-Nom (Ohm)
4
Efisiensi referensi η0(%)
0
Sensitivitas (dB) 1-W
84.8
Sensitivitas (dB) 2.8-V
0
Informasi Pemasangan
Speaker Displacement (l)
2.7
Diameter Total (mm)
0
Diameter Cutout (mm)
229
Kedalaman Pemasangan (mm)
150
Diameter Magnet (mm)
150
Enclosure Optimum
Enclosure
Closed, Vented, BP4, BP6P
