Model

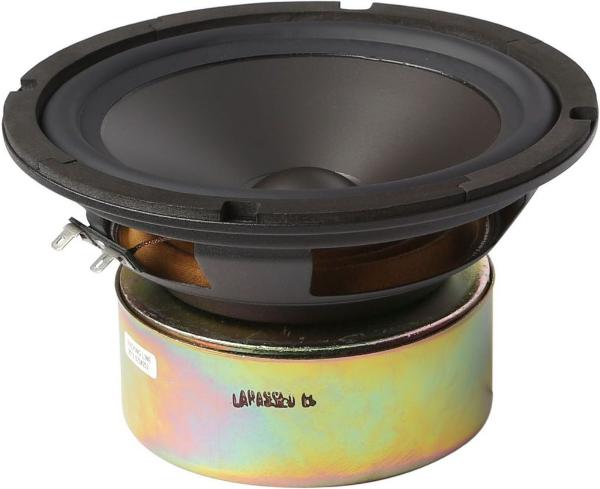

Daichi MID-WOOFER 6 60W (SP65-60)
Rating
DIAM
6"
FS(Hz)
58
VAS(l)
9.37
QTS
0.54
PWR(W)
100
SPL(dB)
85.9
IMP(Ohm)
8x1
avb
PROD
Parameter Thiele–Small
Fs(Hz)
58
Vas(l)
9.4
Qts
0.541
Qms
2.135
Qes
0.725
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
6.5
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
Parameter Umum
Diameter (inch)
6
Daya Maksimum (W)
100
Daya RMS (W)
50
Jumlah Coil
1
Impedansi Z-Nom (Ohm)
8
Efisiensi referensi η0(%)
0.24
Sensitivitas (dB) 1-W
85.9
Sensitivitas (dB) 2.8-V
86.8
Informasi Pemasangan
Speaker Displacement (l)
0
Diameter Total (mm)
165
Diameter Cutout (mm)
157
Kedalaman Pemasangan (mm)
90
Diameter Magnet (mm)
87
Enclosure Optimum
Enclosure
BP4, BP6P, Closed, Vented
