Model

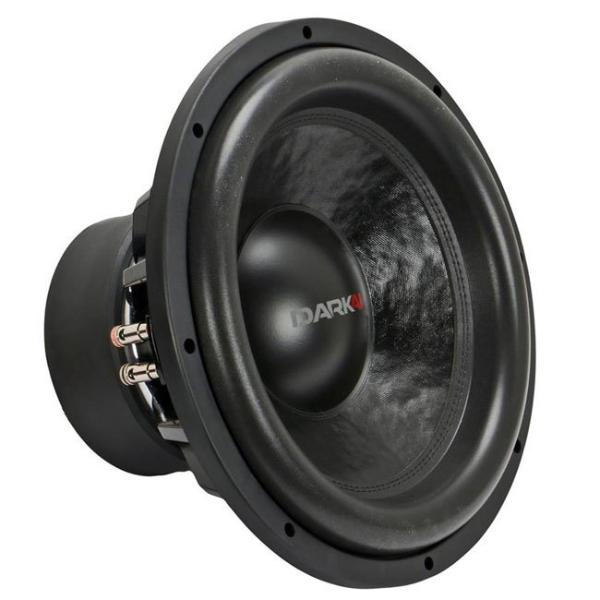

Dark Audio Industry DKI-15 D4
Rating
DIAM
15"
FS(Hz)
29
VAS(l)
65.69
QTS
0.4
PWR(W)
2000
SPL(dB)
86.7
IMP(Ohm)
4x2
avb
PROD
Beberapa parameter memiliki deviasi dari parameter terkait. Lihat tanda seru untuk mendapatkan saran.
Parameter Thiele–Small
Fs(Hz)
29
Vas(l)
65.7
Qts
0.4
Qms
5.5
Qes
0.52
Bl(Tm)
30.4
Mms(gr)
377
Cms(mm/N)
0.08
Rms(kg/s)
12.47
Le(mH)
0
Re(Ohm)
7
Sd(sq.mm)
81346
Vd(l)
1.464
X-max(mm)
18
X-mech(mm)
0
Parameter Umum
Diameter (inch)
15
Daya Maksimum (W)
2000
Daya RMS (W)
1000
Jumlah Coil
2
Impedansi Z-Nom (Ohm)
4
Efisiensi referensi η0(%)
0.3
Sensitivitas (dB) 1-W
86.7
Sensitivitas (dB) 2.8-V
87.3
Informasi Pemasangan
Speaker Displacement (l)
4.81
Diameter Total (mm)
0
Diameter Cutout (mm)
352
Kedalaman Pemasangan (mm)
229
Diameter Magnet (mm)
0
Enclosure Optimum
Enclosure
BP4, BP6P, Closed, Vented
