Model

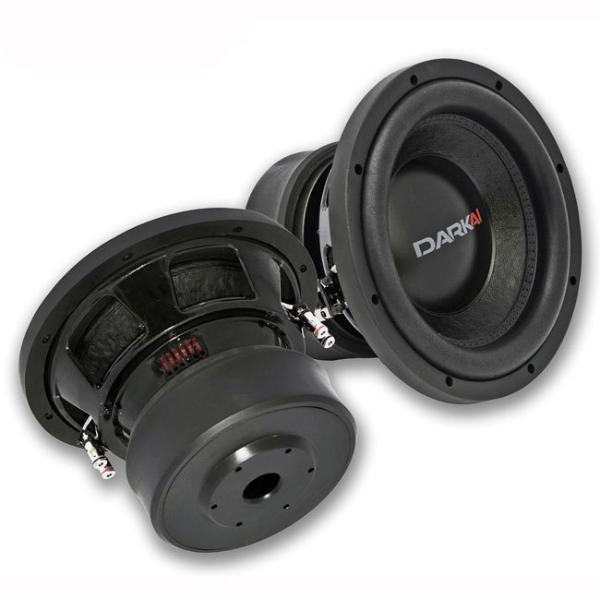

Dark Audio Industry NKO-10 D2
Rating
DIAM
10"
FS(Hz)
38
VAS(l)
15.01
QTS
0.6
PWR(W)
1000
SPL(dB)
83.8
IMP(Ohm)
2x2
avb
NOPROD
Beberapa parameter memiliki deviasi dari parameter terkait. Lihat tanda seru untuk mendapatkan saran.
Parameter Thiele–Small
Fs(Hz)
38
Vas(l)
15
Qts
0.6
Qms
7.6
Qes
0.67
Bl(Tm)
19
Mms(gr)
214
Cms(mm/N)
0.07
Rms(kg/s)
6.71
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
12
X-mech(mm)
0
Parameter Umum
Diameter (inch)
10
Daya Maksimum (W)
1000
Daya RMS (W)
500
Jumlah Coil
2
Impedansi Z-Nom (Ohm)
2
Efisiensi referensi η0(%)
0.12
Sensitivitas (dB) 1-W
83.8
Sensitivitas (dB) 2.8-V
0
Informasi Pemasangan
Speaker Displacement (l)
3.4
Diameter Total (mm)
254
Diameter Cutout (mm)
225
Kedalaman Pemasangan (mm)
162
Diameter Magnet (mm)
0
Enclosure Optimum
Enclosure
BP4, BP6P, Closed, Vented
