Model

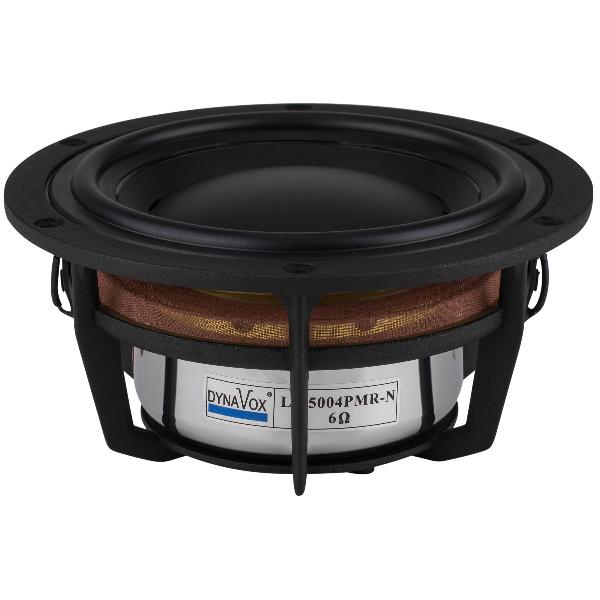

Dynavox LW5004PMR-N
Rating
DIAM
5"
FS(Hz)
56
VAS(l)
8.07
QTS
0.47
PWR(W)
100
SPL(dB)
85.6
IMP(Ohm)
6x1
avb
PROD
Parameter Thiele–Small
Fs(Hz)
56
Vas(l)
8.1
Qts
0.47
Qms
2
Qes
0.6
Bl(Tm)
5.8
Mms(gr)
11
Cms(mm/N)
0.734
Rms(kg/s)
1.94
Le(mH)
0.7
Re(Ohm)
5.3
Sd(sq.mm)
8800
Vd(l)
0.022
X-max(mm)
3
X-mech(mm)
0
Parameter Umum
Diameter (inch)
5
Daya Maksimum (W)
100
Daya RMS (W)
50
Jumlah Coil
1
Impedansi Z-Nom (Ohm)
6
Efisiensi referensi η0(%)
0.23
Sensitivitas (dB) 1-W
85.6
Sensitivitas (dB) 2.8-V
87.4
Informasi Pemasangan
Speaker Displacement (l)
0
Diameter Total (mm)
145
Diameter Cutout (mm)
124
Kedalaman Pemasangan (mm)
67
Diameter Magnet (mm)
70
Enclosure Optimum
Enclosure
BP6P, Vented
