Model

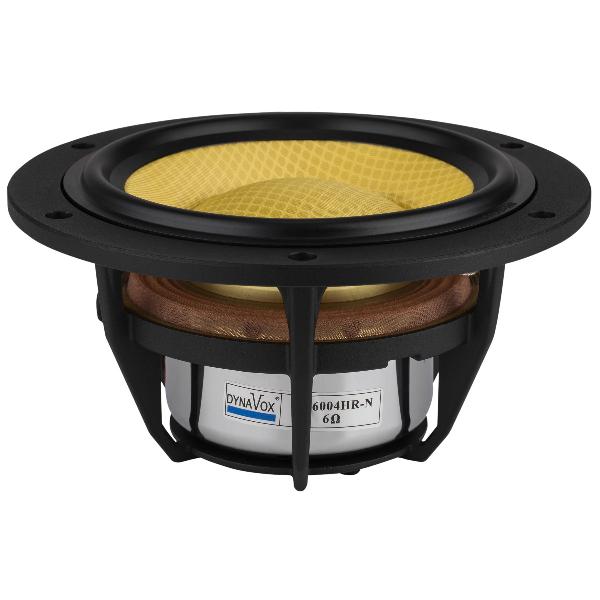

Dynavox LW6004HR-N
Rating
DIAM
6"
FS(Hz)
51
VAS(l)
13.026
QTS
0.52
PWR(W)
100
SPL(dB)
85.9
IMP(Ohm)
6x1
avb
PROD
Parameter Thiele–Small
Fs(Hz)
51
Vas(l)
13
Qts
0.52
Qms
2.28
Qes
0.68
Bl(Tm)
6
Mms(gr)
14
Cms(mm/N)
0.67
Rms(kg/s)
2.035
Le(mH)
0
Re(Ohm)
5.2
Sd(sq.mm)
12200
Vd(l)
0.03
X-max(mm)
2
X-mech(mm)
0
Parameter Umum
Diameter (inch)
6
Daya Maksimum (W)
100
Daya RMS (W)
50
Jumlah Coil
1
Impedansi Z-Nom (Ohm)
6
Efisiensi referensi η0(%)
0
Sensitivitas (dB) 1-W
85.9
Sensitivitas (dB) 2.8-V
0
Informasi Pemasangan
Speaker Displacement (l)
0
Diameter Total (mm)
0
Diameter Cutout (mm)
135
Kedalaman Pemasangan (mm)
83
Diameter Magnet (mm)
0
Enclosure Optimum
Enclosure
BP4, BP6P, Closed, Vented
