Model

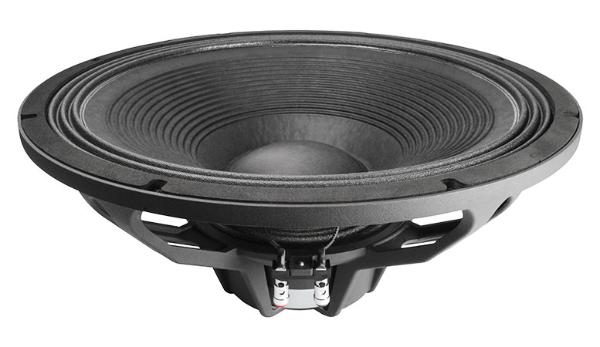

FaitalPRO 18HP1022
Rating
DIAM
18"
FS(Hz)
35
VAS(l)
179
QTS
0.3
PWR(W)
2000
SPL(dB)
95.8
IMP(Ohm)
8x1
avb
PROD
Parameter Thiele–Small
Fs(Hz)
35
Vas(l)
179
Qts
0.3
Qms
14.4
Qes
0.306
Bl(Tm)
28
Mms(gr)
207
Cms(mm/N)
0.1
Rms(kg/s)
3.161
Le(mH)
1.75
Re(Ohm)
5.3
Sd(sq.mm)
112344
Vd(l)
1.067
X-max(mm)
10
X-mech(mm)
18
Parameter Umum
Diameter (inch)
18
Daya Maksimum (W)
2000
Daya RMS (W)
1000
Jumlah Coil
1
Impedansi Z-Nom (Ohm)
8
Efisiensi referensi η0(%)
2.42
Sensitivitas (dB) 1-W
95.8
Sensitivitas (dB) 2.8-V
97.6
Informasi Pemasangan
Speaker Displacement (l)
5.8
Diameter Total (mm)
460
Diameter Cutout (mm)
420
Kedalaman Pemasangan (mm)
188
Diameter Magnet (mm)
138
Enclosure Optimum
Enclosure
Vented, BP6P
