Model

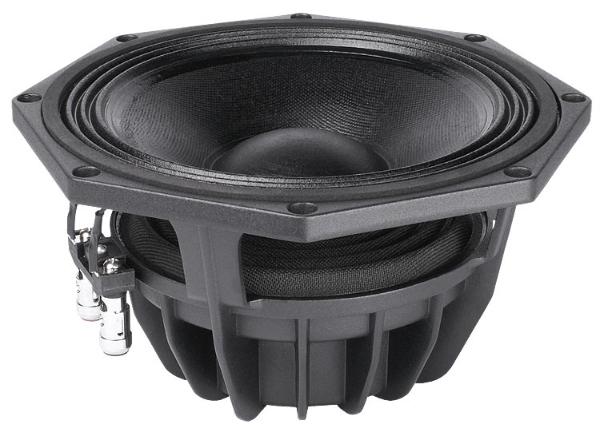

FaitalPRO 8PR200-16
Rating
DIAM
8"
FS(Hz)
60
VAS(l)
14.4
QTS
0.47
PWR(W)
400
SPL(dB)
89.8
IMP(Ohm)
16x1
avb
PROD
Parameter Thiele–Small
Fs(Hz)
60
Vas(l)
14.4
Qts
0.47
Qms
8.8
Qes
0.497
Bl(Tm)
15.5
Mms(gr)
27
Cms(mm/N)
0.264
Rms(kg/s)
1.144
Le(mH)
0
Re(Ohm)
11.9
Sd(sq.mm)
19600
Vd(l)
0.17
X-max(mm)
9
X-mech(mm)
0
Parameter Umum
Diameter (inch)
8
Daya Maksimum (W)
400
Daya RMS (W)
200
Jumlah Coil
1
Impedansi Z-Nom (Ohm)
16
Efisiensi referensi η0(%)
0
Sensitivitas (dB) 1-W
89.8
Sensitivitas (dB) 2.8-V
0
Informasi Pemasangan
Speaker Displacement (l)
1
Diameter Total (mm)
0
Diameter Cutout (mm)
181
Kedalaman Pemasangan (mm)
106
Diameter Magnet (mm)
0
Enclosure Optimum
Enclosure
Vented, BP6P
