Model

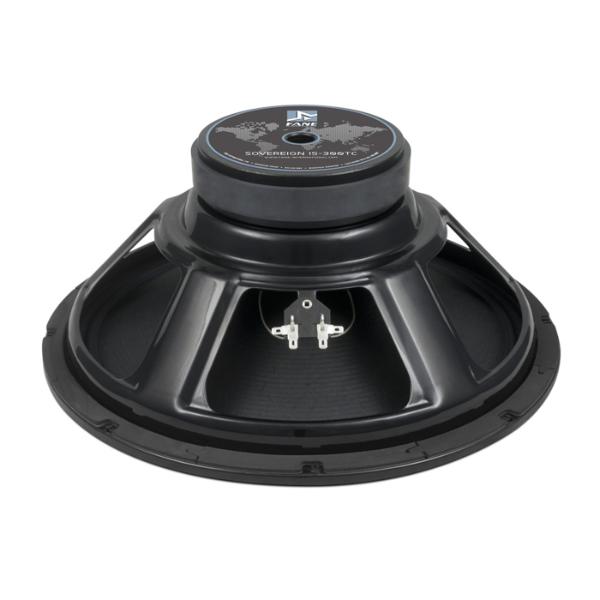

Fane SOVEREIGN 15-300TC
Rating
DIAM
15"
FS(Hz)
48
VAS(l)
203
QTS
0.7
PWR(W)
600
SPL(dB)
96.6
IMP(Ohm)
8x1
avb
PROD
Parameter Thiele–Small
Fs(Hz)
48
Vas(l)
203
Qts
0.7
Qms
9.892
Qes
0.753
Bl(Tm)
11
Mms(gr)
56
Cms(mm/N)
0.196
Rms(kg/s)
1.71
Le(mH)
0.165
Re(Ohm)
5.2
Sd(sq.mm)
85456
Vd(l)
0.29
X-max(mm)
4
X-mech(mm)
0
Parameter Umum
Diameter (inch)
15
Daya Maksimum (W)
600
Daya RMS (W)
300
Jumlah Coil
1
Impedansi Z-Nom (Ohm)
8
Efisiensi referensi η0(%)
2.87
Sensitivitas (dB) 1-W
96.6
Sensitivitas (dB) 2.8-V
98.5
Informasi Pemasangan
Speaker Displacement (l)
0
Diameter Total (mm)
381
Diameter Cutout (mm)
352
Kedalaman Pemasangan (mm)
162
Diameter Magnet (mm)
153
Enclosure Optimum
Enclosure
Closed, Vented, BP4, BP6P
