Model

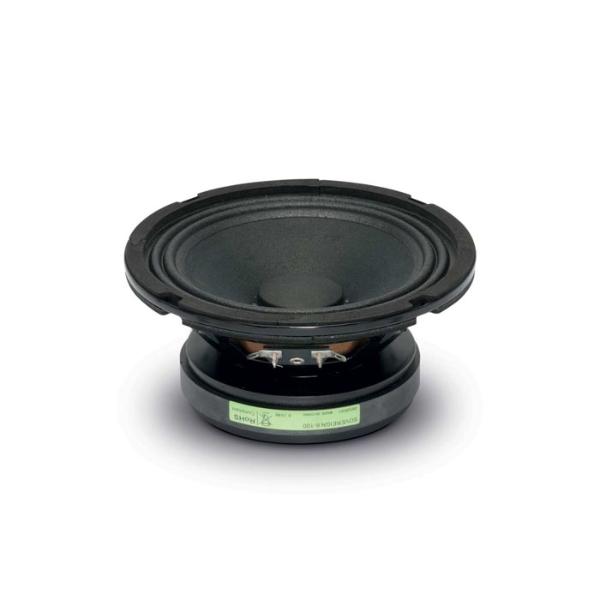

Fane SOVEREIGN 6-100
Rating
DIAM
6"
FS(Hz)
115
VAS(l)
2.2
QTS
0.64
PWR(W)
400
SPL(dB)
88.8
IMP(Ohm)
8x1
avb
PROD
Parameter Thiele–Small
Fs(Hz)
115
Vas(l)
2.2
Qts
0.64
Qms
12.8
Qes
0.674
Bl(Tm)
13.3
Mms(gr)
24
Cms(mm/N)
0.08
Rms(kg/s)
1.35
Le(mH)
1.15
Re(Ohm)
6.8
Sd(sq.mm)
13925
Vd(l)
0.035
X-max(mm)
3
X-mech(mm)
0
Parameter Umum
Diameter (inch)
6
Daya Maksimum (W)
400
Daya RMS (W)
100
Jumlah Coil
1
Impedansi Z-Nom (Ohm)
8
Efisiensi referensi η0(%)
0.48
Sensitivitas (dB) 1-W
88.8
Sensitivitas (dB) 2.8-V
89.5
Informasi Pemasangan
Speaker Displacement (l)
0
Diameter Total (mm)
165
Diameter Cutout (mm)
147
Kedalaman Pemasangan (mm)
55
Diameter Magnet (mm)
0
Enclosure Optimum
Enclosure
Vented, BP6P
