Model

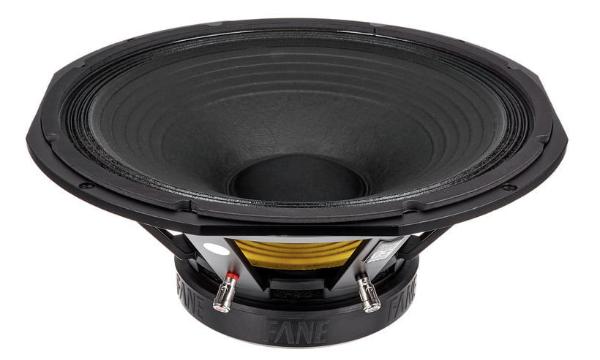

Fane SOVEREIGN PRO 15-600LF
Rating
DIAM
15"
FS(Hz)
40
VAS(l)
188
QTS
0.37
PWR(W)
2400
SPL(dB)
96.8
IMP(Ohm)
8x1
avb
PROD
Parameter Thiele–Small
Fs(Hz)
40
Vas(l)
188
Qts
0.37
Qms
8.8
Qes
0.386
Bl(Tm)
19.7
Mms(gr)
89
Cms(mm/N)
0.178
Rms(kg/s)
2.542
Le(mH)
1.85
Re(Ohm)
6.7
Sd(sq.mm)
86296
Vd(l)
0.595
X-max(mm)
7
X-mech(mm)
0
Parameter Umum
Diameter (inch)
15
Daya Maksimum (W)
2400
Daya RMS (W)
600
Jumlah Coil
1
Impedansi Z-Nom (Ohm)
8
Efisiensi referensi η0(%)
3
Sensitivitas (dB) 1-W
96.8
Sensitivitas (dB) 2.8-V
97.6
Informasi Pemasangan
Speaker Displacement (l)
0
Diameter Total (mm)
406
Diameter Cutout (mm)
352
Kedalaman Pemasangan (mm)
174
Diameter Magnet (mm)
0
Enclosure Optimum
Enclosure
Vented, BP6P
