Model

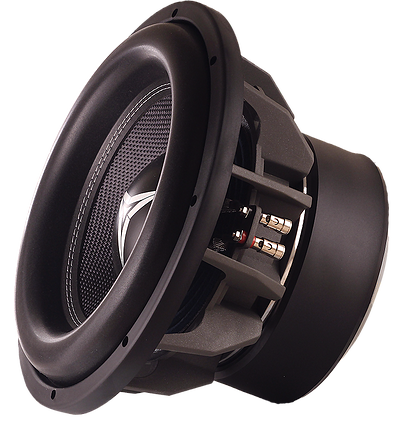

Flex Audio BLU 12 D2
Rating
DIAM
12"
FS(Hz)
31.6
VAS(l)
30.8
QTS
0.33
PWR(W)
1600
SPL(dB)
86.1
IMP(Ohm)
2x2
avb
UNK
Parameter Thiele–Small
Fs(Hz)
31.6
Vas(l)
30.8
Qts
0.33
Qms
4.31
Qes
0.36
Bl(Tm)
23.7
Mms(gr)
257
Cms(mm/N)
0.1
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
Parameter Umum
Diameter (inch)
12
Daya Maksimum (W)
1600
Daya RMS (W)
800
Jumlah Coil
2
Impedansi Z-Nom (Ohm)
2
Efisiensi referensi η0(%)
0
Sensitivitas (dB) 1-W
86.1
Sensitivitas (dB) 2.8-V
0
Informasi Pemasangan
Speaker Displacement (l)
5.66
Diameter Total (mm)
0
Diameter Cutout (mm)
285
Kedalaman Pemasangan (mm)
178
Diameter Magnet (mm)
190
Enclosure Optimum
Enclosure
Vented, BP6P
