Model

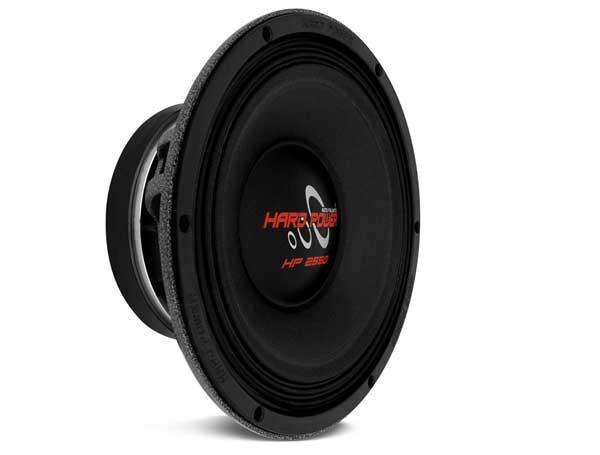

Hard Power HP 2550 S2
Rating
DIAM
15"
FS(Hz)
65.7
VAS(l)
35.12
QTS
0.61
PWR(W)
5100
SPL(dB)
93.8
IMP(Ohm)
2x1
avb
PROD
Parameter Thiele–Small
Fs(Hz)
65.7
Vas(l)
35.1
Qts
0.613
Qms
14.9
Qes
0.639
Bl(Tm)
14.4
Mms(gr)
178
Cms(mm/N)
0.033
Rms(kg/s)
4.93
Le(mH)
0
Re(Ohm)
1.8
Sd(sq.mm)
86625
Vd(l)
0.606
X-max(mm)
7
X-mech(mm)
0
Parameter Umum
Diameter (inch)
15
Daya Maksimum (W)
5100
Daya RMS (W)
2550
Jumlah Coil
1
Impedansi Z-Nom (Ohm)
2
Efisiensi referensi η0(%)
0
Sensitivitas (dB) 1-W
93.8
Sensitivitas (dB) 2.8-V
0
Informasi Pemasangan
Speaker Displacement (l)
0
Diameter Total (mm)
0
Diameter Cutout (mm)
0
Kedalaman Pemasangan (mm)
0
Diameter Magnet (mm)
0
Enclosure Optimum
Enclosure
BP6P, Vented
