Model

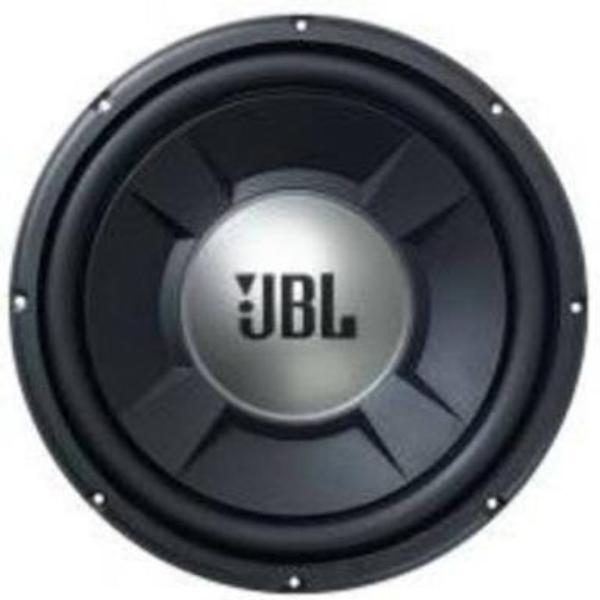

JBL GTO1202D
Rating
DIAM
12"
FS(Hz)
23.5
VAS(l)
97.8
QTS
0.44
PWR(W)
1200
SPL(dB)
86.2
IMP(Ohm)
2x2
avb
NOPROD
Parameter Thiele–Small
Fs(Hz)
23.5
Vas(l)
97.8
Qts
0.44
Qms
7.1
Qes
0.47
Bl(Tm)
7.7
Mms(gr)
189
Cms(mm/N)
0.243
Rms(kg/s)
3.93
Le(mH)
0.71
Re(Ohm)
1
Sd(sq.mm)
53271
Vd(l)
0.666
X-max(mm)
13
X-mech(mm)
0
Parameter Umum
Diameter (inch)
12
Daya Maksimum (W)
1200
Daya RMS (W)
300
Jumlah Coil
2
Impedansi Z-Nom (Ohm)
2
Efisiensi referensi η0(%)
0.26
Sensitivitas (dB) 1-W
86.2
Sensitivitas (dB) 2.8-V
95.2
Informasi Pemasangan
Speaker Displacement (l)
0
Diameter Total (mm)
316
Diameter Cutout (mm)
284
Kedalaman Pemasangan (mm)
0
Diameter Magnet (mm)
0
Enclosure Optimum
Enclosure
BP4, Closed
