Model

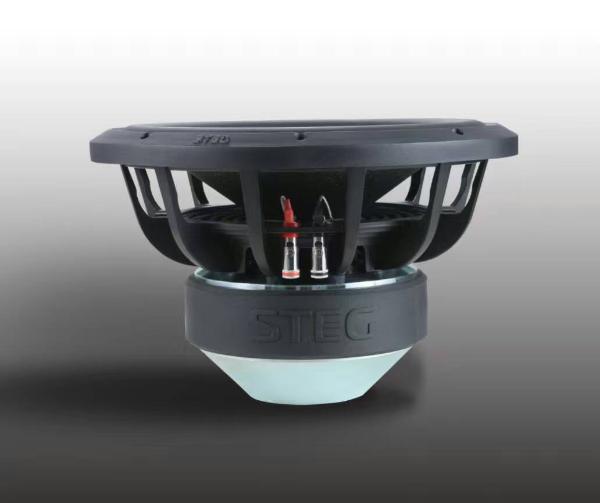

Steg SQS 12
Rating
DIAM
12"
FS(Hz)
26
VAS(l)
78
QTS
0.43
PWR(W)
0
SPL(dB)
86.4
IMP(Ohm)
4x1
avb
PROD
Parameter Thiele–Small
Fs(Hz)
26
Vas(l)
78
Qts
0.426
Qms
3.6
Qes
0.484
Bl(Tm)
15.5
Mms(gr)
176
Cms(mm/N)
0.211
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
4
Sd(sq.mm)
51054
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
Parameter Umum
Diameter (inch)
12
Daya Maksimum (W)
0
Daya RMS (W)
0
Jumlah Coil
1
Impedansi Z-Nom (Ohm)
4
Efisiensi referensi η0(%)
0.27
Sensitivitas (dB) 1-W
86.4
Sensitivitas (dB) 2.8-V
89.4
Informasi Pemasangan
Speaker Displacement (l)
0
Diameter Total (mm)
0
Diameter Cutout (mm)
0
Kedalaman Pemasangan (mm)
0
Diameter Magnet (mm)
0
Enclosure Optimum
Enclosure
Closed, BP4
