Model

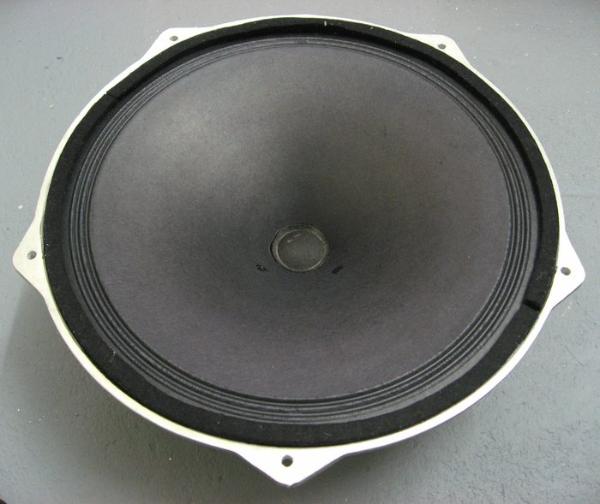

Tesla ARO 835
Rating
DIAM
13"
FS(Hz)
53.7
VAS(l)
131
QTS
0.69
PWR(W)
0
SPL(dB)
96.2
IMP(Ohm)
4x1
avb
UNK
Parameter Thiele–Small
Fs(Hz)
53.7
Vas(l)
131
Qts
0.69
Qms
10.32
Qes
0.739
Bl(Tm)
7
Mms(gr)
33
Cms(mm/N)
0.266
Rms(kg/s)
1.079
Le(mH)
0
Re(Ohm)
3.3
Sd(sq.mm)
58927
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
Parameter Umum
Diameter (inch)
13
Daya Maksimum (W)
0
Daya RMS (W)
10
Jumlah Coil
1
Impedansi Z-Nom (Ohm)
4
Efisiensi referensi η0(%)
0
Sensitivitas (dB) 1-W
96.2
Sensitivitas (dB) 2.8-V
0
Informasi Pemasangan
Speaker Displacement (l)
0
Diameter Total (mm)
0
Diameter Cutout (mm)
326
Kedalaman Pemasangan (mm)
150
Diameter Magnet (mm)
80
Enclosure Optimum
Enclosure
BP4, BP6P, Closed, Vented
