Model

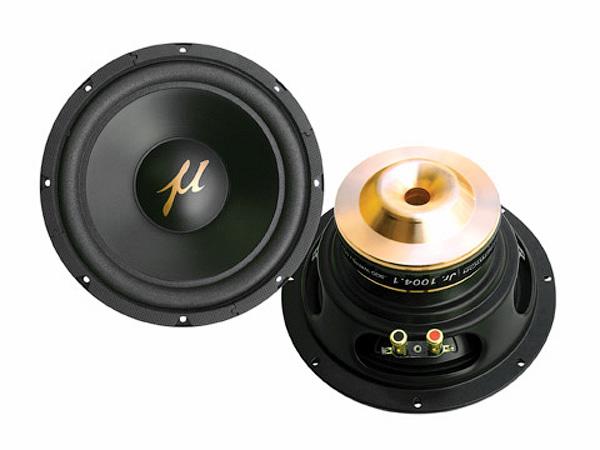

u-Dimension JR.1004.1
Rating
DIAM
10"
FS(Hz)
27.7
VAS(l)
92.5
QTS
0.39
PWR(W)
300
SPL(dB)
88.5
IMP(Ohm)
4x1
avb
NOPROD
Parameter Thiele–Small
Fs(Hz)
27.7
Vas(l)
92.5
Qts
0.394
Qms
5.39
Qes
0.425
Bl(Tm)
10.1
Mms(gr)
68
Cms(mm/N)
0.486
Rms(kg/s)
2.192
Le(mH)
2.015
Re(Ohm)
3.7
Sd(sq.mm)
36633
Vd(l)
0.147
X-max(mm)
7
X-mech(mm)
0
Parameter Umum
Diameter (inch)
10
Daya Maksimum (W)
300
Daya RMS (W)
150
Jumlah Coil
1
Impedansi Z-Nom (Ohm)
4
Efisiensi referensi η0(%)
0.45
Sensitivitas (dB) 1-W
88.5
Sensitivitas (dB) 2.8-V
91.8
Informasi Pemasangan
Speaker Displacement (l)
0
Diameter Total (mm)
256
Diameter Cutout (mm)
230
Kedalaman Pemasangan (mm)
120
Diameter Magnet (mm)
134
Enclosure Optimum
Enclosure
Closed, Vented, BP4, BP6P
