Model

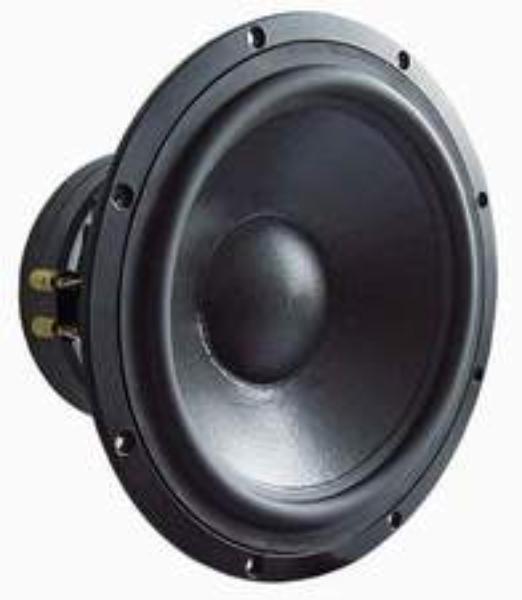

Visaton TIW300
Rating
DIAM
12"
FS(Hz)
25
VAS(l)
160
QTS
0.28
PWR(W)
300
SPL(dB)
91
IMP(Ohm)
8x1
avb
PROD
Parameter Thiele–Small
Fs(Hz)
25
Vas(l)
160
Qts
0.28
Qms
4.59
Qes
0.3
Bl(Tm)
16.5
Mms(gr)
92
Cms(mm/N)
0.438
Rms(kg/s)
3.148
Le(mH)
0
Re(Ohm)
5.7
Sd(sq.mm)
51000
Vd(l)
0.408
X-max(mm)
8
X-mech(mm)
0
Parameter Umum
Diameter (inch)
12
Daya Maksimum (W)
300
Daya RMS (W)
150
Jumlah Coil
1
Impedansi Z-Nom (Ohm)
8
Efisiensi referensi η0(%)
0.8
Sensitivitas (dB) 1-W
91
Sensitivitas (dB) 2.8-V
92.5
Informasi Pemasangan
Speaker Displacement (l)
0
Diameter Total (mm)
0
Diameter Cutout (mm)
0
Kedalaman Pemasangan (mm)
0
Diameter Magnet (mm)
0
Enclosure Optimum
Enclosure
Closed, Vented, BP4, BP6P
